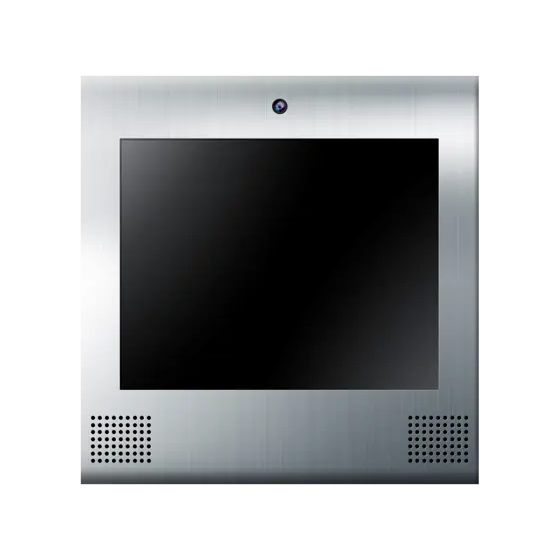

Protege 17 Inch Touchscreen Entry Station Surface Mount

Brand : ICT

UPC : 685225100225

PART # : PRT-ENTR-17-SFC

The Protege 17” Touchscreen Entry Station provides an intuitive visitor communication interface at the building entrance. Operating as a standalone unit or as part of a fully integrated Protege solution, it supports live video and VoIP two-way audio with SIP-compliant devices. Its rugged IP65-rated enclosure, built-in high-resolution camera, and customizable display make it ideal for demanding environments.

Operating Voltage 12VDC (9 -16VDC)

Operating Current 4 A

Power over Ethernet PoE 802.3at Class 4 (25.5W max) For use ONLY with Injector module POE61W-560DG

Speed 10/100

Port 80 Web Interface, 5600 SIP, 9450 Module Comms

Camera Resolution 720p (1280x720 pixels)

amera Viewing Angle 140° horizontal / 70° vertical

Frame Rate 15fps

Speakers Output 2 x 8Ω, 1W RMS

Amplifier Outpt 1.5W, 0.1% THD

Max Volume Output 85dB at 1m

Microphone Input 6mm Electret Condensing

Direction Input Omnidirectional

Sensitivity Input -46dB (Nominal)

Signal/Noise Ratio > 60 dB

Postal Lock Input 1

Open Collector Output 1

Operating Temperature -25°- 55° Celsius (-13° - 131° Fahrenheit)

Working Humidity 10%-90%

Environmental IP Rating IP65

Dim Visible Height 438mm (17.3")

Dim Visible Width 424,5 mm (16,7")

Dim Visible Depth 67,4 mm (2,65")

Dim Bracket / Back Box Height 353mm (13.89")

Dim Bracket / Back Box Width 420mm (16.5")

Dim Bracket / Back Box Depth 2mm (0.07")

No documentation for this product yet.
