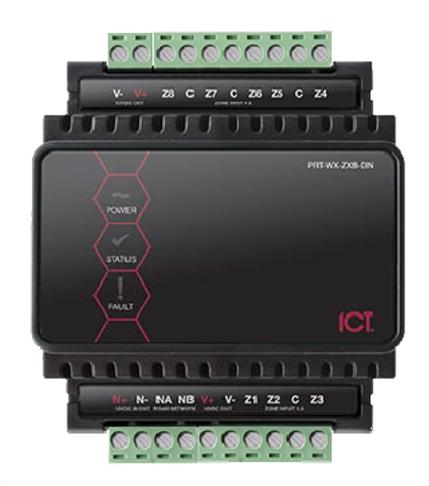

Protégé WX 8-zone (16 zone with zone doubling) DIN-RAIL expander

Brand : ICT

UPC: 685225107477

PART #: PRT-WX-ZX8-DIN

The Protege WX DIN Rail 8 Zone Input Expander seamlessly integrates up to 8 zone inputs into the Protege WX system, a web-based, cross-platform solution for access control and intrusion detection. This expander offers advanced hardware features that enable flexible input programming and configuration, ensuring reliable performance in any security setup. Designed for easy installation with industry-standard DIN Rail mounting, it enhances the system's versatility and efficiency.

Key features include the ability to connect any combination of normally closed or open zones, 8 monitored inputs (expandable to 16 with input duplex mode), and secure encrypted RS-485 communication. The expander also utilizes analog to digital processing with 5x oversampling, supports a 4-state input alarm, and includes online and remote firmware upgrade capabilities, all powered by a high-performance 32-bit processor.

Input Expander Input Expander

Form Factor DIN Rail

DC Input Voltage 11-14VDC

DC Output Voltage 10.83-14.0VDC 0.7A (Typical) Electronic Shutdown at 1.1A

Operating Current 50mA (Typical)

Total Combined Current* 1.5A (Max)

Low Voltage Cutout 8.7VDC

Low Voltage Restore 10.5VDC

RS-485 Module Network

Inputs 8 High Security Monitored Inputs(10ms to 1hr Input Speed Programmable) 16 using input duplex mode

Trouble Inputs 16

Dimensions (L x W x H) 78.4 x 90 x 44.1mm (3.08 x 3.54 x 1.73")

Weight 151g

Operating Temperature 0˚-50˚C (32˚ - 122˚F)

Storage Temperature -10˚- 85˚C (14˚ - 185˚F)

Humidity 0%-93% non-condensing, indoor use only (relative humidity)

Explanatory Footnotes *The Total Combined Current refers to the current that will be drawn from the external power supply to supply the Input Expander and any devices connected to the Expander's outputs. The Auxiliary outputs are directly connected via electronic fuses to the N+ N- input terminals, and the maximum current is governed by the trip level of these fuses.
