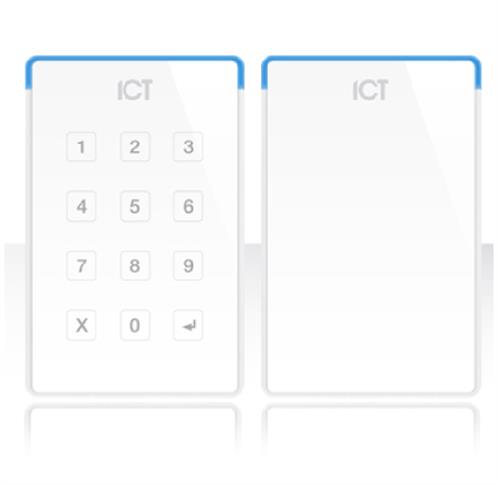

TSEC EXTRA COMBO 13.56MHz / 125KHz Card READER - White - Wall Plate Size

Brand : ICT

PART #: PRX-TSEC-EXTRA-W

The tSec Extra Reader offers a comprehensive multi-technology smart card RFID solution, compatible with all Wiegand-capable control systems and featuring RS-485 communication. This reader enables the swift deployment of secure technology in any environment. Available in multiple card capabilities, including 13.56MHz and 125kHz wireless technology, and offering a choice of black or white finishes the tSec Extra Reader can be tailored to meet the specific needs and decor of any installation.

This versatile reader supports multi-card technology, providing compatibility with DESFire, MIFARE, and 125kHz cards from a single device. It features encrypted RS-485 communication or a standard Wiegand connection, along with optional Bluetooth® and NFC credential reading, ensuring robust security and flexibility. The tSec Extra Reader also supports the OSDP communication protocol with Secure Channel, enhancing secure data transmission.

With a read range of up to 60mm (2.36") for proximity ISO cards, the reader ensures efficient operation. Its configurable LED strip allows for two-color control (blue and green) via external LED wiring, with 16 selectable colors for Protege function codes when using RS-485. The reader’s fully encapsulated design, with an IP65 environmental rating, makes it suitable for both indoor and outdoor use.

The tSec Extra Reader is designed to fit standard wall plate sizes, making it ideal for replacing existing fittings. Optional accessories further expand the range of installation possibilities, providing a flexible and reliable solution for modern access control systems.

Readers Readers

Operating Voltage 12VDC (9.5 to 14VDC)

Operating Current 298mA (peak, reading)

Card Read Range Mifare 60mm (2.36")*; 125kHz Clamshell 40mm (1.57”)^; DESFire EV1 ISO 15mm (0.6")*

Tag Read Range MIFARE 30mm (1.2")*; DESFire EV1/EV2 ISO 6mm (0.23)*; 125kHz 25mm (0.98")^

Wiegand Interface Multiple format 26 or 34 Bit data 0 and data 1, card defined.

Frequency 13.56 MHz ISO/IEC 14443 Type A*; 125kHz pulse width modulated^

Multi Conductor Cable Wiegand: 22Awg alpha 5196, 5198, 18Awg alpha 5386, 5388. Max Distance 150m (492ft); Module comms/RS485: Belden 9842 or equivalent. Max distance 900m (3000ft)

OSDP Communication OSDP standard 2.1.5 with Secure Channel Protocol ** / ***

NFC Read Range Up to 60mm***

NFC (Near-field communication) Electronic credential transmission technology Android 4.4 or above, with phones which support ISO7816-4; Proprietary Secured DESFire credential; Credential is AES-256 (NIST certified AES algorithm); Reader App Version: 1.04.175 and above; Credentials can be distinguished by unique site code and card number

NFC Wireless Device Protege Mobile 1.0.x

Environment IP Rating IP65

Operating Temperature UL/ULC -35° to 66°C (-31° to 151°F) : EU EN -40° to 70°C (-40° to 158°F)

Storage Temperature -10° to 85°C (14° to 185°F)

Mean Time Between Failures (MTBF) 520,834 hours (calculated using RFD 2000 (UTE C 80-810) Standard)

Reader Dimensions (H x W x D) 117 x 75 x 18mm (4.61 x 2.95 x 0.71")

Reader with Surface Mount Box (H x W x D) 119 x 77 x 52mm (4.69 x 3.05 x 2.05")

tSec Extra Reader Net Weight: 160g (5.6oz); Gross Weight: 190g (6.7oz)

tSec Extra Reader Surface Mount Box Net Weight: 70g (2.5oz); Gross Weight: 100g (3.5oz)

Explanatory Footnotes *Applies to MIFARE/DESFire and Multi-Technology models only; ^Applies to 125kHz and Multi-Technology models only; **Applies to 125kHz and Multi-Technology models only; ***Applies to 125kHz and Multi-Technology models only
