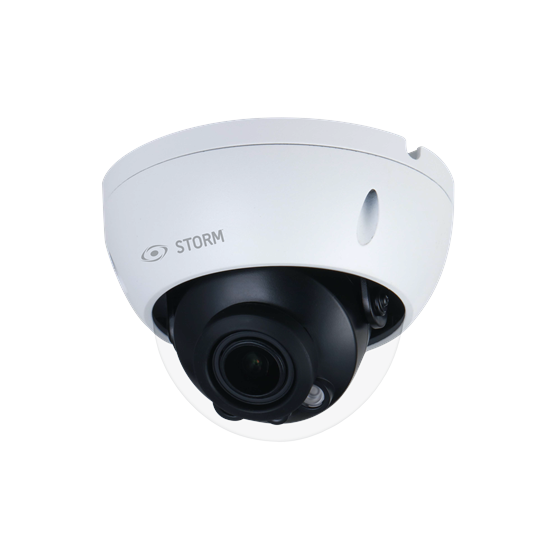

4.1 MP Auto Focus WDR 120DB Network Dome Camera

Brand : STORM

UPC: 685225602644

PART #: INSDO4IRWSA

The 4.1MP H.265 Auto Focus WDR 120dB Network Dome Camera delivers clear, high-definition video with a 4MP CMOS sensor and outputs up to 2688 × 1520 resolution at 30 fps. Equipped with H.265 compression, this camera ensures high-quality video with efficient storage and bandwidth use, even in low-light conditions.

Built-in IR LEDs provide visibility up to 40 meters, and advanced intelligent detection features—like intrusion and tripwire detection—classify and accurately identify vehicles and humans. With WDR 120dB and a Micro SD slot for additional storage, this camera offers reliable performance in dynamic lighting conditions and demanding security applications.

Wide Dynamic Range WDR 120dB or more

Form Factor Dome

Inputs/Outputs Without Inputs/Outputs

Audio In/Out Without Audio In/Out

Lens Type Auto Focus

Megapixels 4 Megapixels

Image Sensor 1/3” 4 Megapixel progressive CMOS

Effective Pixels 2688 (H) ×1520 (V)

RAM/ROM 128MB/128MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manuel 1/3 s–1/100,000 s

Minimum Illumination 0.008 Lux at F1.5

S/N Ratio More than 56 dB

IR Distance 40 m (131.23 ft)

IR LEDs 2

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / WDR 120dB

White Balance Auto / natural / street lamp / outdoor / manual / regional custom

Gain Control Auto/Manual

Noise Reduction 3D DNR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest Yes (4 areas)

Smart Illumination Yes

Privacy Masking 4 Areas

Lens Type Motorized vari-focal

Mount Type φ14

Focal Length 2.7 mm–13.5 mm

Max. Aperture F1.5

Viewing Angle Horizontal: 104°–27° Vertical: 55° –15° Diagonale: 124° –31°

Pan / Tilt / Rotation Pan: 0°–355°; Tilt: 0°–75°; D: 0°–355°

DORI Distance Detect 64.0 m (210.0 ft)(W) 222.0 m (728.3 ft)(T); Observe 25.6 m (84.0 ft)(W) 88.8 m (291.3 ft)(T); Recognize 12.8 m (42.0 ft)(W) 44.4 m (145.7 ft)(T); Identify 6.4 m (21.0 ft)(W) 22.2 m (72.8 ft)(T)

Video Compression H.265+; H.264+; MJPEG (uniquement supporté sur le flux secondaire)

Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate Main Stream: 2688 × 1520 at 1 to 20 fps Sub stream: 704 × 576 (1 fps to 25 fps); 704 × 480 (1 fps to 30 fps)

Bit Rate H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps

Area Protector Tripwire; Intrusion (Recognition of human and vehicles)

Intelligent Search Work together with STORM Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; scene changing; intensity change; tripwire; intrusion; Smart Motion Detection

Ethernet RJ-45 (10/100 Base-T)

SDK & API Yes

Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Storage FTP; SFTP; NAS; Carte Micro SD jusqu'à 256 Go

Management Software STORM, STORM+, ARKIV

Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Compatibility CGI; P2P; Milestone; Genetec

Maximum User Access 20

Smart Phone iOS, Android

Power Supply 12V VCC/PoE (802.3af)

Power Consumption Less than 6.5W

Working Environment -30°C to +60°C (-22°F to +140°F); Less than 95% RH

Protection IP67, IK10

Dimensions Φ122 mm × 88.9 mm (Φ4.8” × 3.5”)

Weight 1.39 lbs (0.63 kg)
