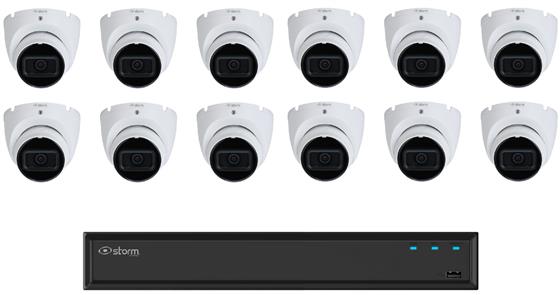

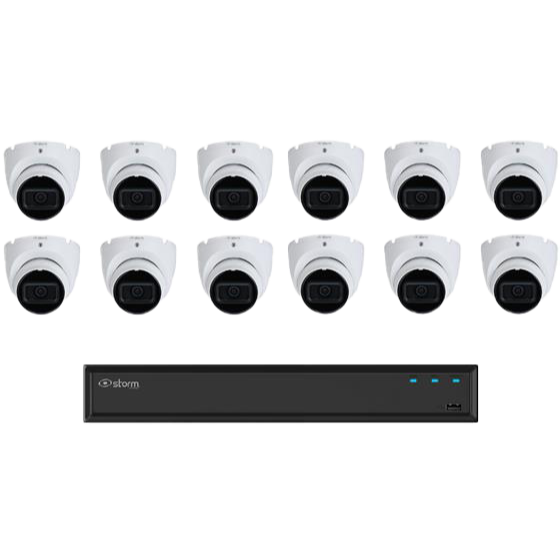

16 Channel 2TB 4K NVR with 12 x 4.1MP Turret Cameras

Brand : STORM

UPC: 685225102878

PART #: INSK16N12T2T

Camera Features

Introducing the 4.1MP Turret Camera, featuring a 4MP, 1/3” CMOS image sensor for superior image quality in low light conditions. It outputs a maximum resolution of 4MP (2688 × 1520) at 30 fps and utilizes the H.265 codec for high compression and ultra-low bit rate. Equipped with a built-in IR LED, it provides clear images up to 30 meters in the dark. The camera also includes abnormality detection such as motion detection, video tampering, and network disconnection, ensuring comprehensive security and monitoring.

NVR Features

Introducing the 16-Channel 2TB 4K NVR, designed for high-efficiency video surveillance. It features H.265+/H.265 dual-stream video compression and supports adaptive decoding. With a maximum decoding capability of 6 × 1080p at 30 fps, it ensures smooth playback and recording. Enhanced with AI per camera, including Area Protector and Smart Motion Detection, this NVR provides advanced security and monitoring solutions.

Plug & Play Video Recorders STORM Network Video Recorder

Channels 16 Channels

Camera specifications -

Image Sensor 1/3” 4Megapixel progressive CMOS

Effective Pixels 2688 (H) ×1520 (V)

RAM/ROM 16MB/64MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.03 Lux at F2.0 (Color, 30IRE); 0.003 Lux at F2.0 (B/W, 30IRE) 0 Lux (Illuminator on)

S/N Ratio More than 56 dB

IR Distance 30 m (98.43 ft)

IR LEDs 1

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / DWDR

White Balance Auto / natural / street lamp / outdoor / manual / regional custom

Gain Control Auto/Manual

Noise Reduction 3D DNR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest Yes (4 areas)

Image Rotation 0°/180° (0° by default)

Smart Illumination Yes

Privacy Masking 4 Areas

Mirror Yes

Lens Type Fixed-flocal

Mount Type M12

Focal Length 2.8 mm

Max. Aperture F2.0

Viewing Angle Horizontal: 90°; Vertical: 50°; Diagonal: 107°

Pan/Tilt/Rotation Pan: 0°–355°; Tilt: 0°–78°; Rotation: 0°–355°

DORI Distance Detect 68.0 m (223.1 ft); Observe 27.2 m (89.2 ft); Recognize 13.6 m (44.6 ft); Identify 6.8 m (22.3 ft)

Compression H.265+; H.264+; MJPEG (only supported on the sub stream)

Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate Main Stream: 2688 × 1520 at 1 to 25/30 fps / Sub stream: 704 × 576 (1 fps to 25 fps); 704 × 480 (1 fps to 30 fps)

Bit Rate H.264: 32 Kbps–4096 Kbps; H.265: 12 Kbps–4096 Kbps

Certifications CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B

Alarm Event IP conflict; illegal access; motion detection; video tampering; security exception; network disconnection

Cyber Security Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and im- porting of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution

Ethernet RJ-45 (10/100 Base-T)

SDK & API Yes

Storage FTP

Management Software STORM, STORM+, ARKIV

Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast

Compatibility ONVIF (Profile S, Profile T), CGI, P2P

Maximum User Access 6

Smart Phone iOS, Android

Browser Chrome; Firefox; Internet Explorer

Power Supply 12V DC/PoE (802.3af)

Power Consumption Less than 4.7W

Working Environment -40°C to +55°C (-40°F to +131°F); Less than 95% RH

Protection IP67

Material Metal

Dimensions 85.6 mm × Φ94.0 mm (3.37” × Φ3.70”)

Weight 0.71 lbs (0.32 kg)

NVR specifications -

Main Processor Industrial embedded micro-processor

Operating System Embedded LINUX

Operation Interface Web; local GUI

Area Protector/Performance 4 channels

Smart Motion Detection/Performance 4 channels, Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Channels 16 Channels

Network Bandwidth Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps

Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, D1

Decoding Capability 1-channel 12MP at 30 fps; 1-channel 8MP at 30 fps; 2-channel 5MP at 30 fps; 3-channel 4MP at 30 fps; 6-channel 1080p at 30 fps

Video Output 1 × VGA, 1 × HDMI (simultaneous)

Multi-screen Display 1 / 4 / 8 / 9 / 16

Third Party Camera Access ONVIF

Video Compression H.265+; H.264+; H.265; H.264; MJPEG

Audio Compression PCM; G.711A; G.711U; G.726

Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports STORM IP cameras, DVR, NVR, and more.) ; P2P

Mobile Phone Access Android; iOS

Interoperability ONVIF (Profile S, Profile G, Profile T), CGI, SDK

Multi-channel Playback Up to 16 channels

Record Mode Manual record; alarm record; motion detection record; schedule record

Storage Method Local HDD and Network

Backup USB device

Playback Function 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame / 2. Full screen; backup(video clip/file); partially zoom in; audio on/off

General Alarm Motion detection; privacy masking; video loss; PIR alarm

Anomaly Alarm Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception

Smart Alarm Area Protector; Smart Motion Detection

Alarm Linkage Recording; snapshot; buzzer; log; preset; email; tour

Audio Input 1 channel

Audio Output 1 channel

HDD 1 SATA ports, up to 16 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB 1 front USB 2.0 port; 1 rear USB 2.0 port

Network 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

Power Supply 12 VDC, 1.5 A

Power Consumption Total output of NVR is ≤ 10 W (without HDD)

Weight 1.79 lbs (0.81kg)

Dimensions 260 mm × 232.7 mm × 47.6 mm (10.24” × 9.16” × 1.87”)

Operating Temperature -10°C to +55°C (+14°F to +131°F); 10%–93% (RH)

Installation Rack or Desktop

Specifications Sheet

16-08-2023 — INSK16N12T2T 16 Channel 2TB 4K NVR bundled with 12 x 4MP Turret Cameras.pdf
