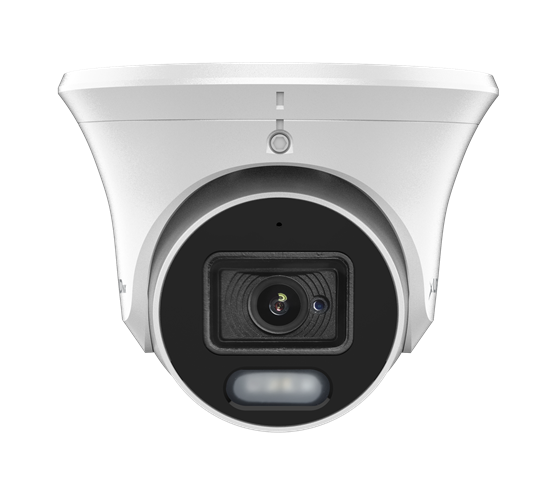

4K Turret Network Camera, Intelligent Dual Light, Fixed Lens

Brand : LegendNX

UPC: 685225308898

PART #: LGNXTO4KDIWF

This 8MP camera delivers high-resolution imaging with advanced H.265+ compression and 120 dB WDR technology for clear, efficient performance. It features deep learning-based human and vehicle classification, Active deterrence with red and blue lights, IP67 water and dust resistance, and built-in microphone with audio and alarm capabilities for comprehensive security.

8MP High-Resolution Imaging
Improve human and vehicle classification using deep learning
120 dB true WDR Technology

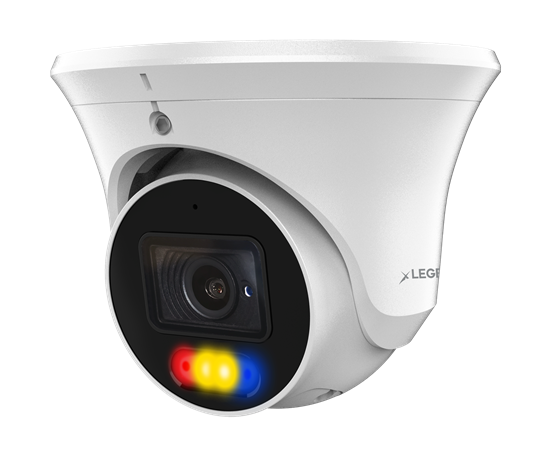

Active Deterrence with Red & Blue lights
Water and dust resistant (IP67)
Built-in microphone, audio & alarm interface
Advanced H.265+ Compression

Lens Type Fixed

NDAA Compliant Yes

Wide Dynamic Range WDR 120dB or more

Audio In/Out Without Audio In/Out

Inputs/Outputs Without Inputs/Outputs

Form Factor Turret

Megapixels 8 Megapixels

Image Sensor 1/2.7” Progressive Scan CMOS Sensor

Minimum Illumination Color: 0.006 Lux (F1.6, AGC ON), 0 Lux with light

Illumination Distance 30m / 98.43ft (IR light) 30m / 98.43ft (Warm Light)

Strobe Light N/A

Smart IR Supported

Pan / Tilt / Rotation Range Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotation: 0° ~ 360°

Focal Length 2.8 mm

Aperture F1.6

Field of View 2.8 mm: Horizontal: 110°, Vertical: 58°, Diagonal: 128°

Lens Mount M12

Maximum Resolution 8MP (3840 × 2160)

Main Stream 50Hz: 20fps 8MP (3840 × 2160), 20fps 6MP (3200 × 1800), 25fps 5MP (3072 × 1728), 25fps 4MP (2560 × 1440), 25fps 1080P (1920 × 1080); 60Hz: 20fps 8MP (3840 × 2160), 20fps 6MP (3200 × 1800), 30fps 5MP (3072 × 1728), 30fps 4MP (2560 × 1440), 30fps 1080P (1920 × 1080)

Sub Stream 50Hz: 25fps 720P (1280 × 720), 25fps D1 (704 × 576), 25fps CIF (352 × 288) (Défaut D1); 60Hz: 30fps 720P (1280 × 720), 30fps D1 (704 × 480), 30fps CIF (352 × 240)

Third Stream 50Hz: 25fps CIF (352 × 288); 60Hz: 30fps CIF (352 × 240)

Image Setting Brightness / Contrast / Saturation / Hue / Sharpness

Shutter Time Auto/Manual, 1/3 ~ 1/100000s

Day/Night IR Cut filter

Wide Dynamic Range 120 dB

Digital Noise Reduction 2D/3D DNR

BLC Supported

HLC Supported

ROI Supported

Rotate Supported

Video Compression H.264 / H.264+ / H.265 / H.265+ / MJPEG

H.264 Codec Profile Base / Main / High profile

H.265 Codec Profile Main Profile

Video Bit Rate 11 Kbps ~ 13 Mbps

Triple Streams Supported

Audio Compression G.711A, G.711U

Audio Bit Rate 64 Kbps

Basic Events Motion detection, Video Tampering

Smart Events Smart motion detection, line crossing, area intrusion, Monitoring entry and exit for specific regions (supports alarm triggering by specified target types (human, vehicle)), fast moving, loitering detection, blurred detection, Scene Alteration Detection, audio exception detection, unattended object, object missing, parking detection

Face Detection N/A

Network Storage NAS (NFS, SMB/CIFS), ANR

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P

System Compatibility Onvif (Profile S, Profile G, T), SDK

Security User authentication, IP address filtering, Video mask

Users Maximum 40 users

Web Browsers Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+

Mobile Surveillance iOS, Android

Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Storage Up to 256GB

Microphone Supported

Speaker N/A

Audio I/O N/A

Alarm I/O N/A

Reset Button Supported

Active Deterrence Features Red/Blue Light Warning

Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F) Humidity 95% or less (non-condensing)

Power Supply DC12V ± 10% PoE

Power Consumption Less than 6.3W

Protection Level IP67

Material Métal

Dimensions Φ 103.5 × 82.4 mm (Φ 4.07’’ × 3.24’’)

Gross Weight 0.99lb / 450g

Specifications Sheet

20-11-2024 — LGNXTO4KDIWF - 4K Intelligent Dual Light Fixed Lens Turret Network Camera.pdf
