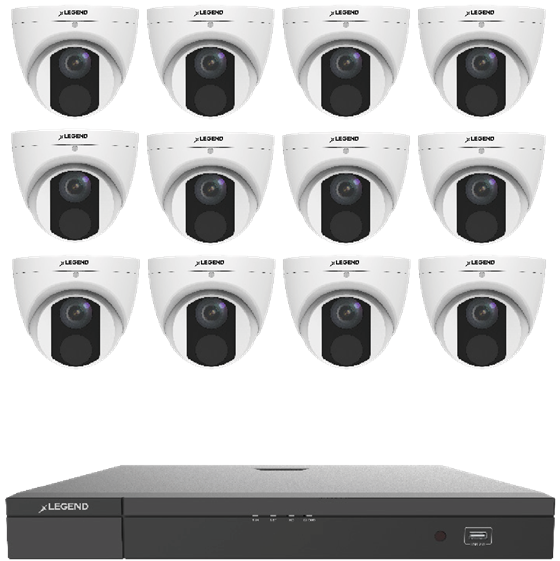

Plug & Play Video Recorders
NDAA Legend Network Video Recorder
Channels
16 Channels
Disk Space
4 TB
Camera Features
-
Image Sensor
1/3”, 4.0 megapixel, progressive scan, CMOS
Minimum Illumination
Color: 0.002Lux (F1.6, AGC ON) / 0 Lux with IR on
Scanning System
Progressive
Wide Dynamic Range
120dB
Electronic Shutter Speed
Auto/Manual, 1 ~ 1/100 000s
Lens Type
Fixed
Minimum Illumination
Color: 0.002Lux (F1.6, AGC ON) / 0 Lux with IR on
Focal Length
2.8mm
S/N Ratio
More than 56dB
DORI Distance
Detect: 63m / Observer: 25.2m / Recognize: 12.6m / Identify: 6.3m
IR Distance
Distance up to 30M (98ft)
Compression
H.265+ / H.265 / H.264 / MJPEG
IR On/Off Control
Auto/Manual
Frame Rate
Main Stream: 4MP (2688 x 1520) Max 30fps; 4MP (2560 x 1440) Max 30fps
Wide Dynamic Range
120dB
Bit Rate
128 Kbps ~ 16 Mbps
Day / Night
IR-cut filter with auto switch (ICR)
Microphone
Built-in Mic
White Balance
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked
Edge Storage
Micro SD slot, up to 256 GB
Noise Reduction
2D/3D DNR
Intrusion
Line Crossing detection, Intrusion detection, Exiting an Area detection, Enter Area
Features
HLC; BLC; Corridor Mode
Detection
Motion detection, tampering alarm, audio detection
Defog
Digital Defog
Power Supply
DC 12V ± 25%, PoE (IEEE 802.3af )
Privacy Masking
Up to 4 areas
Power Consumption
Less than 4W
OSD
Up to 8 OSDs
Ingress Protection
IP67
Smart IR
Supported
Weight
0.42kg (0.93lb)
Motion Detection
Up to 4 areas
Dimensions
110.5 x 94.1mm (4.4” x 3.7”)
Lens Type
Fixed
NVR Features
-
Focal Length
2.8mm
IP Video Input
16-Channel
Viewing Angle
H: 101.1°; V: 55.3°; O: 111.1°
Incoming Bandwidth
160Mbps
Pan/Tilt/Rotate
Pan: 0° ~ 360°; Tilt: 0 ~ 80°; Rotate: 0° ~ 360°
Outgoing Bandwidth
64Mbps
DORI Distance
Detect: 63m / Observer: 25.2m / Recognize: 12.6m / Identify: 6.3m
Recording Resolution
8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Compression
H.265+ / H.265 / H.264 / MJPEG
Liveview Display
1 / 4 / 6 / 8 / 9 / 16
H.264 code profile
Baseline profile, Main Profile, High Profile
Corridor Mode Screen
3 / 4 / 5 / 7 / 9 / 10 / 12 / 16
Frame Rate
Main Stream: 4MP (2688 x 1520) Max 30fps; 4MP (2560 x 1440) Max 30fps; 3MP (2304 x 1296) Max 30fps; 1080P (1920 x 1080) Max 30fps // Sub Stream: 720P (1280 x 720) Max 30fps; D1 (720 x 576) Max 30fps; 640x360 Max 30fps; 2CIF (704 x 288) Max 30fps; CIF (352 x 288) Max 30fps // Third Stream: D1 (720 x 576) Max 30fps; 640 x 360 Max 30fps; 2CIF (704 x 288) Max 30fps; CIF (352 x 288) Max 30fps
Decoding Format
H.265+ / H.265 / H.264
Bit Rate
128 Kbps ~ 16 Mbps
SATA HDD
Up to 2 SATA HDDs
Ethernet
1 RJ45 10M/100M Base-TX Ethernet
Storage
Up to 10TB for each disk
Protocol
IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Camera Smart Detection
Auto Tracking, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed
Compatibility
ONVIF (Profile S, Profile G, Profile T), API,SDK
People Counting
People Flow Counting, Crowd Density Monitoring
Security
Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF, Password protection, Strong password, HTTPS encryption
Power Supply
100 ~ 240 V AC / Power Consumption: Less than 10W (without HDD)
Management Software
LEGEND VMS / ARKIV
Dimensions (WxDxH)
380mm × 315mm × 53mm (14.9” × 12.4” ×2.1”)
Audio Compression
G.711
Weight (without HDD)
5.73 lbs (Up to 2.6kg)
Suppression
Supported
Sampling Rate
8KHZ
Microphone
Built-in Mic
Edge Storage
Micro SD slot, up to 256 GB
Network Storage
ANR, NAS(NFS)
Intrusion
Line Crossing detection, Intrusion detection, Exiting an Area detection, Enter Area detection, false alarm filtering
Detection
Motion detection, tampering alarm, audio detection
General Functions
Watermark, IP Address Filtering, Tampering Alarm ,Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Certifications
CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Power Supply
DC 12V ± 25%, PoE (IEEE 802.3af )
Power Consumption
Less than 4W
Working Environment
-30° C ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Surge Protection
4KV
Material
Metal
Weight
0.42kg (0.93lb)
Dimensions
110.5 x 94.1mm (4.4” x 3.7”)
NVR Features
-
IP Video Input
16-Channel
Two-way Audio Input
1-Channel, RCA
Incoming Bandwidth
160Mbps
Outgoing Bandwidth
64Mbps
Remote Users
128
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
HDMI/VGA Output
HDMI: 3840 x 2160 at 30fps; 1920 x 1080 at 60fps; 1920 x 1080 at 50fps; 1600 x 1200 at 60fps; 1280 x 1024 at 60fps; 1280 x 720 at 60fps; 1024 x 768 at 60fps; VGA: 1920 x 1080 at 60fps, 1920 x 1080 at 50fps, 1280 x 1024 at 60fps, 1280 x 720 at 60fps, 1024 x 768 at 60fps
Recording Resolution
8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Audio Output
1-Channel, RCA
Audio Compression
G.711A, G.711U
Synchronous Playback
16-Channel
Liveview Display
1 / 4 / 6 / 8 / 9 / 16
Corridor Mode Screen
3 / 4 / 5 / 7 / 9 / 10 / 12 / 16
Decoding Format
H.265+ / H.265 / H.264
Liveview/Playback
8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Capability
2 x 4K at 30fps, 4 x 4MP at 30fps, 5 x 3MP at 30fps, 8 x 1080P at 30fps, 16 x 720P at 30fps
SATA HDD
Up to 2 SATA HDDs
Storage
Up to 10TB for each disk
Camera Smart Detection
Auto Tracking, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed
Smart Search
Behavior Search
People Counting
People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention
8-Channel
Trigger Events
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection, IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Network Interface
1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface
Front panel: 1 x USB2.0, Rear panel: 1 x USB 3.0
Alarm In/Out
4-Channel / 1-Channel
Interface
16 RJ-45 10M/100M self-adaptive Ethernet Interface
Maximum Capacity
Max: 30W for single port Max: 240W in total
Supported Standard
IEEE 802.3af/at
Certification
Certification: CE CE, FCC, UL, RoHS, WEEE; CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017; FCC: Part15 Subpart B, ANSI C63.4
Power Supply
100 ~ 240 V AC / Power Consumption: Less than 10W (without HDD)
Working Envrionment
-10°C to +55°C; Less than 90% RH (non-condensing)
Dimensions (WxDxH)
380mm × 315mm × 53mm (14.9” × 12.4” ×2.1”)
Weight (without HDD)
5.73 lbs (Up to 2.6kg)
