Image Sensor
1/2.8”, 8.0 megapixel, progressive scan, CMOS
Minimum Illumination
Colour: 0.0025 Lux (F1.6, AGC ON); 0 Lux with IR
Features
HLC; BLC; 120dB WDR
Lens Type
Autofocus
Focal Length
2.8mm to 12mm
DORI Distance
Wide (2.8mm): Detect 86.9m; Observe 34.8m; Recognize 17.4m; Identify 8.7m / Telemetric (12mm): Detect 372.4m; Observe 149m; Recognize 74.5m; Identify 37.2m
Compression
H.265+ / H.265 / H.264 / MJPEG
Storage
Micro SD slot, up to 256 GB
Power Supply
DC 12V±25%, PoE (IEEE 802.3af )
Compliance
NDAA
Minimum Illumination
Colour: 0.0025 Lux (F1.6, AGC ON); 0 Lux with IR
Features
HLC; BLC; 120dB WDR
Lens Type
Autofocus
Focal Length
2.8mm to 12mm
DORI Distance
Wide (2.8mm): Detect 86.9m; Observe 34.8m; Recognize 17.4m; Identify 8.7m / Telemetric (12mm): Detect 372.4m; Observe 149m; Recognize 74.5m; Identify 37.2m
Compression
H.265+ / H.265 / H.264 / MJPEG
Frame Rate
Main Stream: 3840 x 2160, Max 20fps; 3072 x 1728, Max 30fps; 2560 x 1440, Max 30fps; 1920 x 1080, Max 30fps; Sub Stream: 1920 x 1080, Max 30fps; 1280 x 720, Max 30fps; 720 x 576, Max 30fps; 640 x 360,Max 30fps; 704 x 288, Max 30fps; 352 x 288, Max 30fps; Third Stream: 720 x 576, Max 30fps; 640 x 360,Max 30fps; 704 x 288, Max 30fps; 352 x 288, Max 30fps;
Protocol
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
Compliance
NDAA
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1 ~ 1/100 000s
S/N Ratio
More than 56dB
IR Distance
Distance up to 50M (164ft)
Wavelength
850nm
IR On/Off Control
Auto/Manual
White Balance
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked
Noise Reduction
2D/3D DNR
Defog
Digital Defog
Dewarping
Supported
Privacy Masking
Up to 4 areas
OSD
Up to 8 OSDs
Smart IR
Supported
ROI
Up to 8 areas
Viewing Angle
H: 107.4°°~ 29.2°; V: 54.2°~ 16.3°; O: 111.0°°~33.1°
Pan/Tilt/Rotate
Pan: 0° ~ 360°; Tilt: 0 ~ 90°; Rotate: 0° ~ 360°
Bit Rate
128 Kbps ~ 16 Mbps
H.264 code profile
Baseline profile, Main profile, High profile
Alarm I/O
1/1
Network
1 x RJ45 10M/100M Base-TX Ethernet
Compatibility
ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host
Up to 32 users. 2 user levels: administrator and common user
Security
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Management Software
LEGEND VMS, Arkiv
Audio I/O
1 x Input: impedance 35kΩ; amplitude 2V [p-p]; 1x Output: impedance 600Ω; amplitude 2V [p-p]
Audio Compression
G.711
Audio Bitrate
64 Kbps
Suppression
Supported
Sampling Rate
8KHZ
Two-way Audio
Supported
Edge Storage
Micro SD slot, up to 256 GB
Network Storage
ANR, NAS(NFS)
Smart Detection
Support false alarm filtering, Line crossing detection, Intrusion detection, Entering/Leaving Area Detection
Statistical Analysis

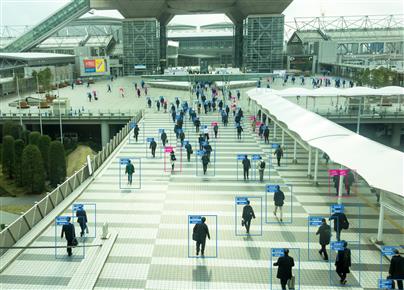

People counting, support people flow counting, and crowd density monitoring
Basic Detection
Motion detection, Tampering alarm, Audio detection
General Function
Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
EMC
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020), FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety
CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Power Supply
DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption
Less than 10.5W
Working Environment
-30° C to +60° (-22°F ~ 140°F) / Less than 95% RH (non-condensing)
Protection
IP67 & IK10
Weight
2.03lb (0.92kg)
Dimensions
245 × 86 × 72mm (9.6” × 3.4” × 2.8”)
