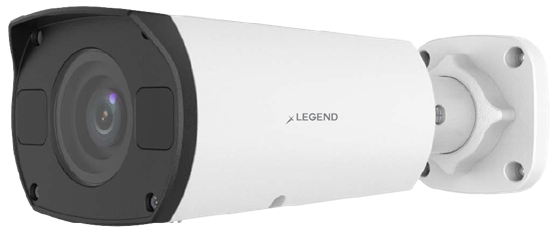

Image Sensor
1/3’’ 4 Megapixels progressive scan CMOS
Minimum Illumination
Color: 0.01 Lux (F1.6, AGC On); 0 Lux with IR on
Wavelength
850nm
IR On/Off Control
Auto/Manual
Day/Night
IR-cut filter with auto switch (ICR)
Backlight Compensation
Supported
White Balance
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Noise Reduction
2D/3D DNR
Features
HLC; BLC; WDR 120dB; Digital Defog
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1~1/100,000 s
S/N Ratio
Less than 56dB
IR Distance
Distance up to 50m (164ft)
Privacy Masking
Up to 4 areas
OSD
Up to 4 OSDs
Region of Interest
Up to 8 areas
Lens Type
Motorized Lens
Focal Length
2.8mm ~ 12mm
Viewing Angle
H: 102.79° ~ 30.86°; V: 54.50° ~ 17.49°; O: 106.94° ~ 35.49°
Pan/Tilt/Rotate
Pan: 0° ~ 360°; Tilt: 0 ~ 90°; Rotate: 0 ~ 360°
DORI Distance
Detect(2.8mm): 63.0m; Detect(12mm): 270m; Observe(2.8mm): 25.2m; Observe(12mm): 108m; Recognize(2.8mm): 12.6m; Recognize(12mm): 54m; Identify(2.8mm): 6.3m; Identify(12mm): 27m
Compression
H.265+, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 4MP (2688x1520), Max 25fps; 4MP (2560x1440), Max 25fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps // Sub Stream: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; (640x360), Max 30fps
Basic Detection
Cross line, Intrusion (based on human body detection); Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Ethernet
1 x RJ45 10M/100M Base-TX Ethernet
Protocol
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP
Compatibility
ONVIF (Profile S, Profile G, Profile T), API, SDK
Security
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client
LEGEND VMS, Arkiv
Web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above // Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Edge Storage
Micro SD card, up to 256GB
Network Storage
ANR, NAS (NFS)
Built-in Mic
Support
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Suppression
Support
Sampling Rate
8KHZ
EMC
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety
CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Power Supply
DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption
Less than 8.5W
Working Environment
-30°C to 60°C (-40°F to 140°F) / Less than 95% RH
Protection
IP67
Weight
1.2 lbs (0.55kg)
Dimensions
206 × 74 × 74mm (8.1” × 2.9” × 2.9”)
