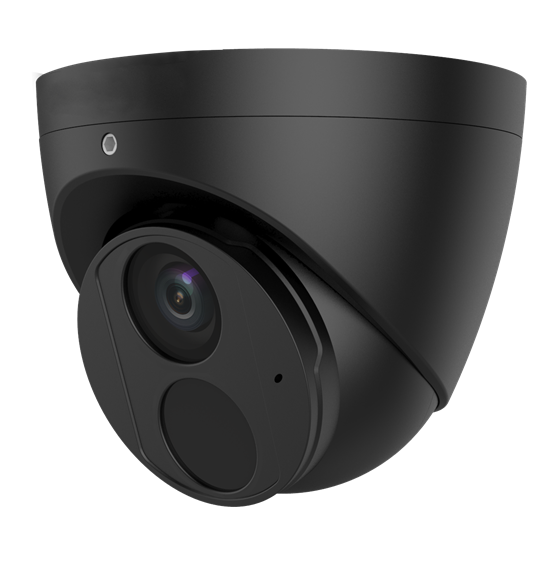

Image Sensor
1/3”, 4.0 megapixel, progressive scan, CMOS
Minimum Illumination
Color: 0.003 Lux (F1.6, AGC ON) / 0Lux with IR on
Focal Length
2.8mm
DORI Distance
Detect: 63m; Observe: 25.2m; Recognize: 12.6m; Identify: 6.3m
Compression
H.265+ / H.265 / H.264 / MJPEG
Frame Rate
Main Stream: 4MP (2688x1520), Max 25fps; 4MP (2560x1440), Max 25fps; 3MP (2304x1296), Max 25fps; 1080P (1920x1080), Max 30fps
Edge Storage
Micro SD slot, up to 256 GB
Power Supply
DC 12V ± 25%, PoE (IEEE 802.3af )
Weight
0.42kg (0.93lb)
Dimensions
110.5 x 94.1mm (4.4” x 3.7”)
Minimum Illumination
Color: 0.002 Lux (F1.6, AGC ON) / 0Lux with IR on
Focal Length
2.8mm
DORI Distance
Detect: 63m; Observe: 25.2m; Recognize: 12.6m; Identify: 6.3m
Compression
H.265+ / H.265 / H.264 / MJPEG
Frame Rate
Main Stream: 4MP (2688x1520), Max 25fps; 4MP (2560x1440), Max 25fps; 3MP (2304x1296), Max 25fps; 1080P (1920x1080), Max 30fps // Sub Stream: 720P (1280 x 720) Max 30fps; D1 (720 x 576) Max 30fps; 640x360 Max 30fps; 2CIF (704 x 288) Max 30fps; CIF (352 x 288) Max 30fps // Third Stream: D1 (720 x 576) Max 30fps; 640 x 360 Max 30fps; 2CIF (704 x 288) Max 30fps; CIF (352 x 288) Max 30fps
Bit Rate
128 Kbps ~ 16 Mbps
Ethernet
1 RJ45 10M/100M Base-TX Ethernet
Protocol
IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatibility
ONVIF (Profile S, Profile G, Profile T), API, SDK
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1 ~ 1/100 000s
S/N Ratio
More than 56dB
IR Distance
Distance up to 30M (98ft)
IR On/Off Control
Auto/Manual
Wide Dynamic Range
120dB
Day/Night
IR-cut filter with auto switch (ICR)
Backlight Compensation
Supported
White Balance
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked
Noise Reduction
2D/3D DNR
Features
HLC; BLC; Corridor Mode
Defog
Digital Defog
Privacy Masking
Up to 4 areas
OSD
Up to 8 OSDs
Smart IR
Supported
Motion Detection
Up to 4 areas
Lens Type
Fixed
Viewing Angle
H: 101.1°; V: 55.3°; O: 111.1°
Pan/Tilt/Rotate
Pan: 0° ~ 360°; Tilt: 0 ~ 80°; Rotate: 0° ~ 360°
H.264 code profile
Baseline profile, Main profile, High profile
Security
Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF, Password protection, Strong password, HTTPS encryption
Management Software
LEGEND VMS / ARKIV
Audio Compression
G.711
Suppression
Supported
Sampling Rate
8KHZ
Microphone
Built-in Mic
Edge Storage
Micro SD slot, up to 256 GB
Network Storage
ANR, NAS(NFS)
Intrusion
Line Crossing detection, Intrusion detection, Exiting an Area detection, Enter Area detection, false alarm filtering
Statistical Analysis
Support people flow counting and crowd density monitoring
Detection
Motion detection, tampering alarm, audio detection
General Functions
Watermark, IP address filtering, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication
Certifications
CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Power Supply
DC 12V ± 25%, PoE (IEEE 802.3af)
Power Consumption
Less than 4W
Working Environment
-30° C ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Surge Protection
4KV
Material
Metal
Weight
0.42kg (0.93lb)
Dimensions
Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
