Serveurs IP

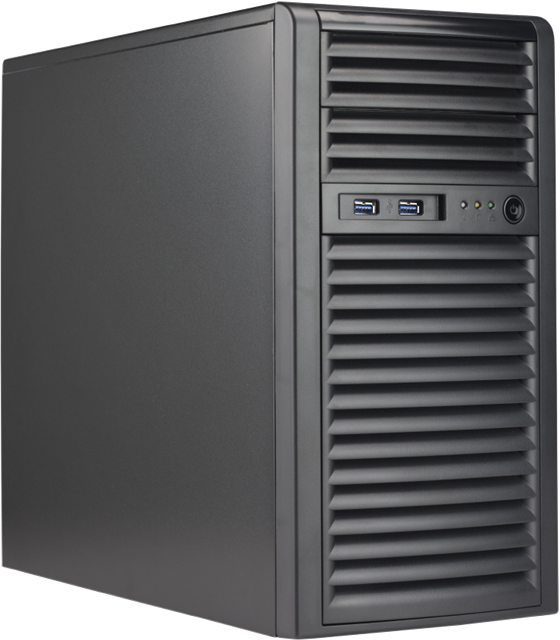

Ordinateur de bureau
Type de Serveur
Serveur IP
Raid
N/A
Hot swap
N/A
Dual supply
N/A
Espace disque
5 TB
Maximum de caméras IP
Data rate dependent; VMS Application dependent
OS du Server
Arkiv, IVTVision, STORM ou logiciel de tierce partie
Video Management Software
Arkiv, STORM, LEGEND or 3rd party software such as ExacqVision™, Genetec™, Milestone™, Avigilon™, and more
Server OS
Windows 11 Pro 64 bit (standard)
Stockage maximal
64 TB
Drive Bays
4 x 3.5” SAS/SATA Backplane for Hot-Swappable Drives
DVD / CD-ROM
Optional
Keyboard & Mouse
Included
OS Compatible
Windows 7, Windows Vista, Windows 8.1, Windows 10, Windows Server 2012/2016 or Mac OS X
Network Controllers
Dual LAN with Intel® Ethernet i225LM
LAN
PCIE Network Card (Startech ST1000SPEX2L GbE, TP-Link TG-3468, or equivalent)
SATA
Intel Q670E controller for 8 SATA3 (6 Gbps) ports;
PCI-E Add on Card
Up to 2 NVMe SSDs
Graphics Adapter
NVIDIA A2000
CPU
Latest Generation Intel®Core i7, 30M Cache, up to 5.20 GHz
Core
Up to 24 cores
Compatible OS
Windows 11 Pro, Server 2022 32-bit or 64-bit
Solid-State Drive
2 x 1TB NVMe M.2
*Maximum Video Storage Rate
600 to 800 Mbps (Windows)
RAM
2 x Memory 8GB DDR-5/4800 (or faster)
Memory Type
4400/4000/3600 MT/s
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.1V
USB Ports
6 x USB 2.0 & 6 x USB 3.1
Display Outputs
1 VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port
SATA
8 SATA3 (6Gbps) port(s)
Input Voltage
668W with Input 100 - 240Vac
Power supply
PS2 668W Multi-output power supply 80PLUS Platinum
Heatsink/Fan
Speed Control: 4-pin PWM; Rated Voltage: 12.0 VDC; Rated Speed: 3,800 RPM
Dimensions
426 mm x 178 mm x 531 mm (H x W x D)
Weight
40 lbs
Regulatory
BSMI; CCC; CE/EMC; FCC class B; TUV/CB; UL/CUL
