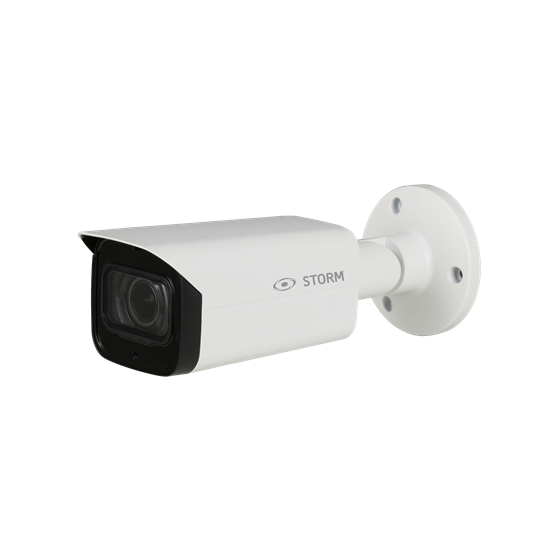

5MP HD over Coax Auto-Focus Bullet

Brand : STORM

UPC: 685225609865

PART #: INSBO5IRWCA

The 5MP HD over Coax Auto-Focus Bullet Camera is a versatile and robust surveillance solution designed to deliver high-quality imaging in various environments. Featuring a 2.7-13.5mm motorized lens, this camera offers auto-focus capabilities and captures video at a maximum frame rate of 20 fps in 5MP resolution. Its HD/SD output switchable function ensures compatibility with different video systems, making it suitable for both new installations and upgrades.

Enhanced by Starlight technology, the camera provides clear and detailed images even in low-light conditions. Its 120 dB true WDR (Wide Dynamic Range) and 3D NR (Noise Reduction) further enhance image clarity, balancing exposure and reducing noise. The camera's Smart IR technology ensures optimal night vision with a maximum IR illumination distance of 80 meters, ensuring reliable performance in complete darkness.

Built to withstand harsh conditions, the camera is rated IP67 for weather resistance and IK10 for impact protection, making it ideal for both indoor and outdoor use. It operates on a 12V DC power supply with a ±30% tolerance, ensuring stability and reliability. Additionally, the camera features an audio channel with a built-in microphone, enhancing security by capturing both video and audio.

Wide Dynamic Range WDR 120dB or more

Lens Type Auto Focus

Audio In/Out Without Audio In/Out

Inputs/Outputs Without Inputs/Outputs

Form Factor Bullet

Megapixels 5 Megapixels

Image Sensor 1/2.7” 5 Megapixel progressive scan CMOS

Effective Pixels 2880 (H) × 1620 (V)

Scanning System Progressive

Electronic Shutter Speed PAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 s

Minimum Illumination 0.001 Lux / F1.6, 30IRE, 0 Lux IR on

S/N Ratio More than 65 dB

IR Distance Up to 80m (262ft)

IR LEDs 4

Day/Night Auto (ICR) / Manual

Backlight Compensation B BLC / HLC / HLC-Pro / WDR 120dB

White Balance Auto/Manual

Gain Control Auto/Manual

Noise Reduction 2D/3D

Digital Zoom 4x

Defog Electronic

Smart IR Supported

Lens Type Motorized Lens

Focal Length 2.7 mm–13.5 mm

Max. Aperture F1.6

Viewing Angle Horizontal: 31.4°–113° Vertical: 17.6°–58° Diagonal: 36°–138°

Pan/Tilt/Rotation Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotation: 0° ~ 360°

DORI Distance Wide (2.7mm): Detect 64.0 m (210.0 ft); Observe 25.6 m (84.0 ft); Recognize 12.8 m (42.0 ft); Identify 6.4 m (21.0 ft) / Telemetry (13.5mm): Detect 210.0 m (689.0 ft); Observe 84.0 m (275.6 ft); Recognize 42.0 m (137.8 ft); Identify 21.0 m (68.9 ft)

Frame Rate CVI: PAL: 5MP at 25 fps; 4MP at 25 fps; 1080p at 25 fps; NTSC: 5MP at 25 fps; 4MP at 30 fps; 1080p at 30 fps; AHD: PAL: 4MP at 25 fps; NTSC: 4MP at 30 fps; TVI: PAL: 4MP at 25 fps; NTSC: 4MP at 30 fps; CVBS: PAL: 960H; NTSC: 960H

Resolution 5MP (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Audio Interface 1 channel & Built-in microphone

Power Supply 12V ±30% DC

Power Consumption Less than 10.7W (12V DC, IR on)

Working Environment –30°C to +60°C (–22°F to +140°F); Less than 90% RH

Protection IP67

Dimensions 244.1mm × 90.4mm × 90.4mm (9.61” × 3.56” × 3.56”)

Weight 2.4 lbs (1.07 kg)

INSX152 - Mini Pole Mount Bracket

PART #: INSX152 View more

INSX135 - Junction box

PART #: INSX135 View more

Specifications Sheet

06-09-2024 — INSBO5IRWCA 5MP HD over Coax Auto-Focus Bullet 2022 (v2).pdf
