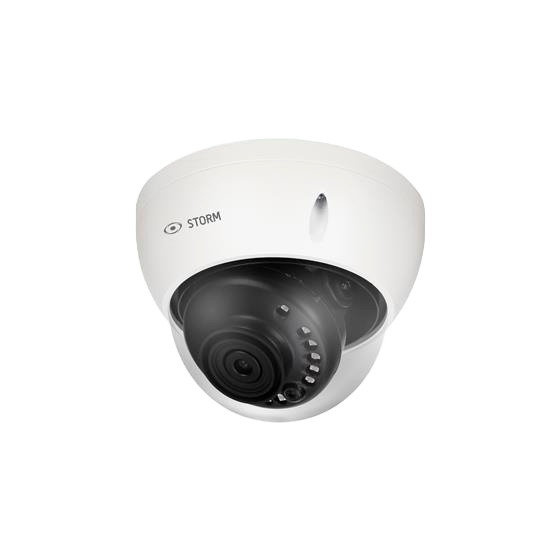

5MP HDCVI FIXED DOME, IN/OUT, Fixed 2.8mm

Brand : STORM

UPC: 685225609810

PART #: INSDO5IRCF

The 5MP HD over Coax Fixed Dome Camera is a robust surveillance solution featuring a 2.8mm fixed lens and a maximum frame rate of 25 fps at 5MP resolution in a 16:9 video output format. This camera supports multiple video formats, including CVI, CVBS, AHD, and TVI, ensuring broad compatibility with various systems.

Designed for optimal performance in low-light conditions, the camera is equipped with Smart IR technology, providing clear night vision with an IR illumination distance of up to 30 meters. Its durable construction includes an IP67 rating for weather resistance and an IK10 rating for impact protection, making it suitable for both indoor and outdoor environments.

Powered by a DC12V supply, the 5MP HD over Coax Fixed Dome Camera combines high-quality imaging with reliable performance, making it an excellent choice for a wide range of security applications.

Form Factor Dome

Lens Type Fixed

Wide Dynamic Range WDR less than 120dB

Audio In/Out Without Audio In/Out

Inputs/Outputs Without Inputs/Outputs

Megapixels 5 Megapixels

Image Sensor 1/2.7” 5 Megapixel progressive scan CMOS

Effective Pixels 2880 (H) × 1620 (V)

Scanning System Progressive

Electronic Shutter Speed PAL: 1/25~1/100,000s; NTSC: 1/30~1/100,000s

Minimum Illumination 0.005 Lux / F1.6, 30IRE, 0 Lux IR on

S/N Ratio More than 65 dB

IR Distance Up to 30 m (98.4 ft)

IR LEDs 12

Day/Night Auto switch by ICR

Backlight Compensation BLC / HLC / DWDR

White Balance Auto/Manual

Gain Control AGC

Noise Reduction 2D NR

Smart IR Yes

Lens Type Fixed

Mount Type M12

Focal Length 2.8 mm

Max. Aperture F1.6

Viewing Angle H: 111°; V: 58°

Pan/Tilt/Rotation Pan: 0° ~ 355°; Tilt: 0° ~ 65°; Rotation: 0° ~ 355°

DORI Distance Detect: 63.6 m (208.7 ft); Observe: 25.4 m (83.3 ft); Recognize: 12.7 m (41.7 ft); Identify: 6.4 m (21.0 ft)

Frame Rate PAL: 5M at 25 fps; 4M at 25 fps; 1080P at 25 fps; NTSC: 5M at 25 fps; 4M at 30 fps; 1080P at 30 fps; PAL: 4M at 25 fps; NTSC: 4M at 30 fps; PAL: 4M at 25 fps; NTSC: 4M at 30 fps; PAL: 960H; NTSC: 960H

Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)

Video Output Video output choices of CVI / TVI / AHD / CVBS by one BNC port

Power Supply 12V ±30% DC

Power Consumption Less than 3.5W

Working Environment –40°C to +60°C (–40°F to 140°F); Less than 95% (non-condensation)

Protection IP67; IK10

Dimensions φ109.9 mm × 81.0 mm ( φ4.33” × 3.19” )

Weight 0.99 lbs (0.45 kg)

INS200W - Camera Rain cover

PART #: INSX200W View more

INSX152 - Mini Pole Mount Bracket

PART #: INSX152 View more

INSX136 - Junction box

PART #: INSX136 View more

INSX203 - Water proof wall mount Bracket

PART #: INSX203 View more

UNIVERSAL CAMERA FORMAT CONVERTOR

PART #: INSXUFC View more

HDCVI BALUN 1 PAIR

PART #: INSXBALUN View more

Specifications Sheet

21-02-2022 — INSDO5IRCF 5MP HD over Coax Fixed Dome 2021.pdf
