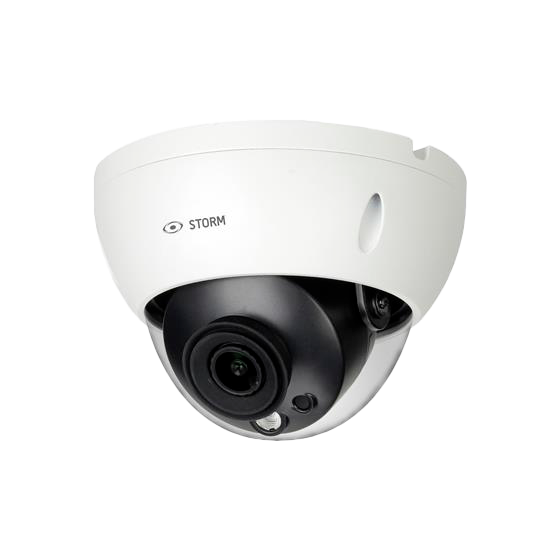

4K ULTRA-HD Network Dome Camera, Fixed 2.8mm

Brand : STORM

UPC: 685225606048

PART #: INSDO4KIRF

The 4K Ultra-HD H.265 Fixed Dome Camera combines high-resolution surveillance with efficient performance features, delivering clear 8MP video from its 1/2.7" CMOS image sensor even in low-light conditions. Equipped with WDR (120dB) and Day/Night (ICR) functionality, it adapts to varying light levels, supported by 3DNR, AWB, AGC, and BLC for enhanced image clarity and balance.

This dome camera utilizes the H.265 codec to provide high compression rates and ultra-low bit rates, optimizing storage and bandwidth. Built-in IR LEDs offer up to 30 meters of night vision, while intelligent features like intrusion and tripwire detection enable proactive monitoring and detailed security coverage, making it a robust solution for modern surveillance needs.

Form Factor Dome

Lens Type Fixed

Wide Dynamic Range WDR 120dB or more

Inputs/Outputs Without Inputs/Outputs

Audio In/Out Without Audio In/Out

Megapixels 8 Megapixels

Image Sensor 1/2.7” 8 Megapixel progressive CMOS

Effective Pixels 3840(H) x 2160(V)

RAM/ROM 256MB/128MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.009 Lux at F2.0

S/N Ratio More than 56 dB

IR Distance 30 m (98.43 ft)

IR LEDs 3

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / WDR 120dB

White Balance Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control Auto/Manual

Noise Reduction 3D DNR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest Yes (4 areas)

Smart Illumination Yes

Privacy Masking 4 Areas

Lens Type Fixed

Mount Type Board-in

Focal Length 2.8mm

Max. Aperture F2.0

Viewing Angle Horizontal: 105.0° Vertical: 56.0° Diagonal: 125.0°

Pan/Tilt/Rotation Pan: 0°–355°; Tilt: 0°–65°; D: 0°–355°

DORI Distance Detect 74.7 m (245.1 ft), Observe 29.9 m (98.1 ft), Recognize 14.9 m (48.9 ft), Identify 7.5 m (24.6 ft)

Video Compression H.265+; H.264+; MJPEG

Resolution 4K (3840×2160) / 6M (3072×2048) / 5M (2560×1920) / 3M (2048x1536) / 3M (2304×1296) / 1080P (1920×1080) / 1.3M (1280x960) / 720P (1280×720) / D1 (704×576/704×480) / VGA (640×480) / CIF (352×288/352×240)

Frame Rate Main Stream: 3840 × 2160 (1 fps–15 fps); 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps)

Bit Rate H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps

Smart Functions Tripwire, Intrusion

Alarms Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception

Ethernet RJ-45 (10/100 Base-T)

Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Storage FTP; SFTP; Micro SD Card up to 256GB; NAS

Management Software STORM, STORM+, ARKIV

Compatibility CGI; P2P; Milestone; Genetec

Maximum User Access 20

Smart Phone iOS, Android

Power Supply 12V DC/PoE (802.3af)

Power Consumption Less than 6.2W

Working Environment -40°C to +60°C (-40°F to +140°F); Less than 95% RH

Protection IP67, IK10

Dimensions 81 mm × Φ109.9 mm (3.19” × Φ4.33”)

Weight 1.08 lbs (0.491kg)

INSX203 - Water proof wall mount Bracket

PART #: INSX203 View more

INSX136 - Junction box

PART #: INSX136 View more

INSX152 - Mini Pole Mount Bracket

PART #: INSX152 View more

INS200W - Camera Rain cover

PART #: INSX200W View more

Specifications Sheet

08-02-2022 — INSDO4KIRF 4K H265 Dome Camera 2022.pdf
