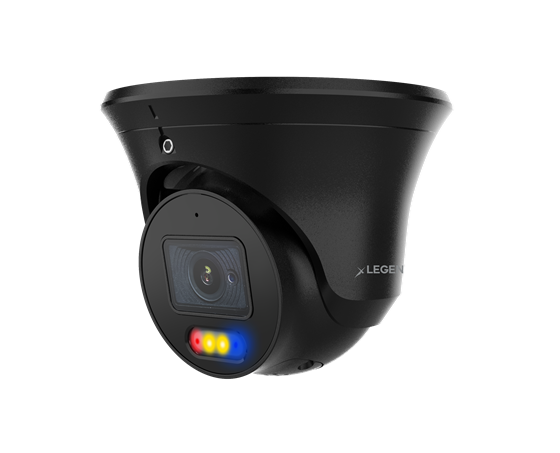

5.1 MP Black Turret Network Camera, Intelligent Dual Light Fixed Lens

Brand : LegendNX

UPC: 685225308874

PART #: LGNXTO5DIWFB

This 5MP camera provides high-resolution imaging with advanced H.265+ compression and 120 dB true WDR technology for optimal clarity in various lighting conditions. It enhances human and vehicle classification through deep learning, features active deterrence with red and blue lights, and is water and dust resistant (IP67), complete with a built-in microphone.

5MP High-Resolution Imaging
Improve human and vehicle classification using deep learning
120 dB true WDR Technology
Active Deterrence with Red & Blue lights
Water and dust resistant (IP67)
Built-in microphone
Advanced H.265+ Compression

Wide Dynamic Range WDR 120dB or more

NDAA Compliant Yes

Lens Type Fixed

Form Factor Turret

Inputs/Outputs Without Inputs/Outputs

Audio In/Out Without Audio In/Out

Megapixels 5 Megapixels

Image Sensor 1/2.7” Progressive Scan CMOS Sensor

Minimum Illumination Color: 0.006 Lux (F1.6, AGC ON), 0 Lux with light

Illumination Distance 30m / 98.43ft (IR light) 30m/98.43ft (Warm light)

Strobe Light N/A

Smart IR Supported

Pan/Tilt/Rotation Range Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°

Focal Length 2.8mm

Aperture F1.6

Field of View 2.8mm: Horizontal: 114°, Vertical: 61°, Diagonal: 135°

Lens Mount M12

Maximum Resolution 5MP (2960 × 1664)

Main Stream 50Hz: 20ips 5MP (2960 × 1664), 25ips 4MP (2688 × 1520), 25ips 4M (2560 × 1440), 25ips 1080P (1920 × 1080); 60Hz: 20ips 5MP (2960 × 1664), 30ips 4MP (2688 × 1520), 30ips 4M (2560 × 1440), 30ips 1080P (1920 × 1080)

Sub Stream 50Hz: 25ips 720P (1280 × 720) 25ips D1 (704 × 576), 25ips CIF (352 × 288); 60Hz: 30ips 720P (1280 × 720) 30ips D1 (704 × 480), 30ips CIF (352 × 240)

Third Stream 50Hz: 25ips CIF (352 × 288); 60Hz: 30ips CIF (352 × 240)

Image Setting Brightness / Contrast / Saturation / Hue / Sharpness

Shutter Time Auto/Manual, 1/3 ~ 1/100000s

Day/Night IR Cut filter

Wide Dynamic Range 120 dB

Digital Noise Reduction 2D/3D DNR

BLC Supported

HLC Supported

ROI Supported

Rotate Supported

Video Compression H.264 / H.264+ / H.265 / H.265+ / MJPEG (sub stream)

H.264 Codec Profile Base / Main / High profile

H.265 Codec Profile Main Profile

Video Bit Rate 11 Kbps ~ 10 Mbps

Triple Streams Supported

Audio Compression G.711A, G.711U

Audio Bit Rate 64 Kbps

Basic Events Motion detection, Video Tampering

Smart Events Line crossing detection, area intrusion, Monitoring entry and exit for specific regions (support alarm triggering by specified target types (human and vehicle)

Face Detection N/A

Network Storage NAS (NFS, SMB/CIFS), ANR

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P

System Compatibility Onvif (Profile S, Profile G, T), SDK

Security User authentication, IP address filtering, Video mask

Users Maximum 40 users

Web Browsers Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+

Mobile Surveillance iOS, Android

Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Storage Up to 256GB

Microphone Supported

Speaker N/A

Audio I/O N/A

Alarm I/O N/A

Reset Button Supported

Active Deterrence Features Red/Blue Light Warning

Operating Conditions -40°C ~ 60°C (-40°F ~ 140°F) Humidity 95% or less (non-condensing)

Power Supply DC12V ± 25%; PoE (802.3 af)

Power Consumption Less than 6W

Protection Level IP67

Material Metal

Dimensions Φ 103.5 × 82.4 mm (Φ 4.07’’ × 3.24’’)

Gross Weight 0.99lb / 450g

Specifications Sheet

21-11-2024 — LGNXTO5DIWFB - 5.1 MP Intelligent Dual Light Fixed Lens Turret Network Camera.pdf
