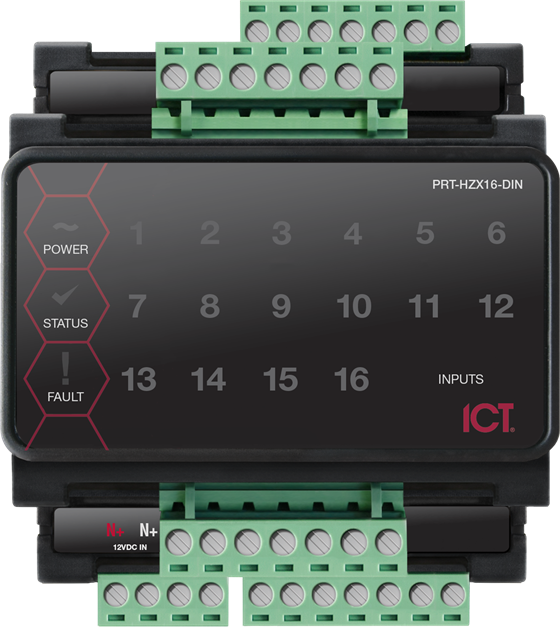

Protege Half DIN Rail 16 Zone Input Expander

Brand : ICT

UPC: 685225107866

PART #: PRT-HZX16-DIN

The Protege Half DIN Rail 16 Zone Input Expander is a versatile expansion module designed to enhance security systems with its 16 monitored inputs. It supports any combination of normally closed or normally open inputs, with each input configurable to meet specific requirements. The expander utilizes advanced analog-to-digital processing with five times oversampling for precise monitoring.

Equipped with a high-performance 32-bit processor, the module offers four-state input alarms (short, alarm, closed, and tamper) using resistors to ensure comprehensive status reporting. Secure encrypted RS-485 communications facilitate reliable data transfer, while online and remote firmware upgrades provide ongoing adaptability. The unit is also designed for easy installation on industry-standard DIN rails.

Form Factor DIN Rail

Input Expander Input Expander

DC Input Voltage 11-14VDC

DC Output Voltage 10.83-14.0VDC 0.7A (typical) electronic shutdown at 1.1A

Operating Current 80mA (Typical)

Total Combined Current* 3A (max)

Low Voltage Cutout 8.7VDC

Low Voltage Restore 10.5VDC

RS-485 Module Network

Zone Inputs 16 High Security Monitored Inputs(10ms to 1hr Input Speed Programmable)

Trouble Inputs 16

Dimensions (L x W x H) 78 x 90 x 60mm (3.07 x 3.54 x 2.36")

Net Weight 180g (6.3oz)

Gross Weight 240g (8.5oz)

Operating Temperature UL/ULC 0° to 49°C (32° to 120°F) : EU EN -10° to 55°C (14° to 131°F)

Storage Temperature -10°- 85°C (14° - 185°F)

Humidity 0%-93% non condensing, indoor use only (relative humidity)

* The Total Combined Current refers to the current that will be drawn from the external power supply to supply the Input Expander and any devices connected to the expander's outputs. The Auxiliary outputs are directly connected via electronic fuses to the N+ N- input terminals, and the maximum current is governed by the trip level of these fuses.
