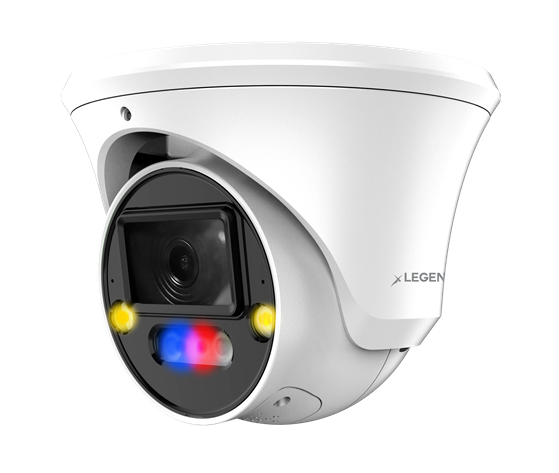

5.1 MP Turret Network Camera Active Deterrence, Fixed Lens

Brand : LegendNX

UPC: 685225309000

PART #: LGNXTO5ADWF

This 5MP camera delivers high-resolution imaging with advanced H.265+ compression for efficient storage and 120 dB WDR technology for enhanced clarity in varying lighting conditions. It features deep learning for accurate human and vehicle detection, active deterrence with red and blue lights, IP67-rated weather resistance, and built-in audio and alarm interfaces.

5MP High-Resolution Imaging
Improve human and vehicle classification using deep learning
120 dB true WDR Technology
Active Deterrence with Red & Blue lights
Water and dust resistant (IP67)
Built-in microphone, audio & alarm interface
Advanced H.265+ Compression

Image Sensor 1/2.7” Progressive Scan CMOS Sensor

Minimum Illumination Color: 0.003 Lux (F1.0, AGC ON), 0 Lux with light

Illumination Distance 30m / 98.43ft (IR light), 30m / 98.43ft (Warm light)

Strobe Light N/A

Smart IR Supported

Pan / Tilt / Rotation Range Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°

Focal Length 2.8mm

Aperture F1.0

Field of View 2.8mm: Horizontal: 103°, Vertical: 55°, Diagonal: 122°

Lens Mount M12

DORI 2.8mm Detect: 67m, Observe: 25.9m, Recognize: 13m, Identify: 6.5m

Maximum Resolution 5MP (2880 × 1620)

Main Stream 50Hz: 25fps 5MP (2880 × 1620), 4MP (2688 × 1520), 4MP (2560 × 1440), 1080P (1920 × 1080); 60Hz: 30fps 5MP (2880 × 1620), 4MP (2688 × 1520), 4MP (2560 × 1440), 1080P (1920 × 1080)

Sub Stream 50Hz: 25fps 720P (1280 × 720), D1 (704 × 576), CIF (352 × 288); 60Hz: 30fps 720P (1280 × 720), D1 (704 × 480), CIF (352 × 240)

Third Stream 50Hz: 25fps CIF (352 × 288); 60Hz: 30fps CIF (352 × 240)

Image Setting Brightness / Contrast / Saturation / Hue / Sharpness

Shutter Time Auto/Manual, 1/3 ~ 1/100000s

Day/Night IR Cut filter

Wide Dynamic Range 120 dB

Digital Noise Reduction 2D/3D DNR

BLC Supported

HLC Supported

ROI Supported

Rotate Supported

Video Compression H.264 / H.264+ / H.265 / H.265+ / MJPEG

H.264 Codec Profile Base / Main / High profile

H.265 Codec Profile Main Profile

Video Bit Rate 11 Kbps ~ 10 Mbps

Triple Streams Supported

Audio Compression G.711A, G.711U

Audio Bit Rate 64 Kbps

Basic Events Motion detection, Video Tampering

Smart Events Line crossing detection, area intrusion, Monitoring entry and exit for specific regions (support alarm triggering by specified target types (human and vehicle), Scene Alteration Detection and Video Blur Detection

Face Detection Supported

Network Storage NAS (NFS, SMB/CIFS), ANR

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P

System Compatibility Onvif (Profile S, Profile G, T), SDK

Security User authentication, IP address filtering, Video mask

Users Maximum 40 users

Web Browsers Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+

Surveillance Mobile iOS, Android

Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Storage Up to 256GB

Microphone Supported

Speaker Supported

Audio I/O 1/1

Alarm I/O 1/1

Reset Button Supported

Active Deterrence Features Red/Blue Light Warning & Sound Warning

Operating Conditions -40°C ~ 60°C (-40°F ~ 140°F) Humidity 95% or less (non-condensing)

Power Supply DC12V ± 25%

PoE PoE (802.3 af)

Power Consumption Less than 8W

Protection Level IP67

Material Metal

Dimensions Φ 144.5 × 113.5 mm (Φ 5.68’’ × 4.47’’)

Gross Weight 2.30lb / 1045g

Specifications Sheet

20-11-2024 — LGNXTO5ADWF 5mp Turret Network camera with Active Deterrence, Fixed Lens.pdf
