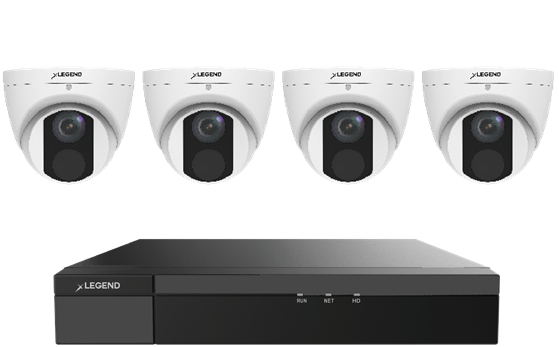

Plug & Play Video Recorders
NDAA Legend Network Video Recorder
Disk Space
1 TB
Channels
4 Channels
Camera Features
-
Image Sensor
1/3”, 4.0 megapixel, progressive scan, CMOS
Minimum Illumination
Color: 0.002Lux (F1.6, AGC ON) / 0 Lux with IR on
Minimum Illumination
Colour: 0.002 lux (F1.6, AGC ON), 0 lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
Electronic Shutter Speed
Auto/Manual, 1 ~ 1/100 000s
Pan/Tilt/Rotate
Pan: 0° ~ 360°; Tilt: 0 ~ 75°; Rotate: 0° ~ 360°
WDR
120dB
Microphone
Built-in Mic
S/N Ratio
More than 56dB
Intrusion
Line Crossing detection, Intrusion detection, Exiting an Area detection, Enter Area detection, false alarm filtering
IR Distance
Distance up to 30M (98ft)
Detection
Motion detection, tampering alarm, audio detection
IR On/Off Control
Auto/Manual
Lens Type
Fixed
Focal Length
2.8mm
Viewing Angle
H: 97°; V: 52.2°; O: 107.5°
DORI Distance
Detect: 63m / Observe: 25.2m / Recognize: 12.6m / Identify: 6.3m
Compression
H.265+ / H.265 / H.264 / MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 4MP (2560x1440), Max 25fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps // Sub Stream: 720P (1280 x 720) Max 30fps; D1 (720 x 576) Max 30fps; 640x360 Max 30fps; 2CIF (704 x 288) Max 30fps; CIF (352 x 288) Max 30fps // Third Stream: D1 (720 x 576) Max 30fps; 640 x 360 Max 30fps; 2CIF (704 x 288) Max 30fps; CIF (352 x 288) Max 30fps
Lens Type
Fixed
Video Bit Rate
128 Kbps ~ 6144 Kbps
OSD
Up to 4 OSDs
Region of Interest
Up to 8 areas
Privacy Masking
Up to 4 areas
White Balance
Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Noise Reduction
2D/3D DNR
Smart IR
Supported
Flip
Normal / Vertical / Horizontal / 180°
HLC
Supported
Camera Smart Detection
Auto Tracking, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed
BLC
Supported
Smart Search
Behavior Search
Defog
Digital Defog
People Counting
People Flow Counting, Crowd Density Monitoring
Basic Detection
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Smart Motion Detection
Smart Intrusion Prevention
4-Channel
General Function
Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
Edge Storage
Micro SD slot, up to 128 GB
HDMI/VGA Output
HDMI: 3840 x 2160 at 30Hz; 1920 x 1080p at 60Hz; VGA: 1920 x 1080p at 60Hz
Network Storage
ANR, NAS(NFS)
Ethernet
1 RJ45 10M/100M Base-TX Ethernet
Protocol
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatibility
ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host
Up to 32 users. 2 user levels: administrator and common user
Security
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Management Software
LEGEND VMS, Arkiv
Web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above / Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Certifications
EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020); FCC: (FCC CFR 47 part15 B, ANSI C63.4-2014) Safety CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01); Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006); Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Power Supply
DC 12V ± 25%, PoE (IEEE 802.3af )
Power Consumption
Less than 4W
Power Interface
Ø 5.5mm coaxial power plug
Working Environment
-30° C to +60° (-22°F ~ 140°F) / Less than 95% RH (non-condensing)
Dimensions
Φ118 x 97mm (Φ4.6” x 3.8”)
Weight
0.66lb (0.30kg)
Material
Metal + Plastic
NVR Features
-
Decoding Format
H.265+ / H.265 / H.264
Capability
4K at 30fps; 3 x 5MP at 30fps; 4 x 4MP at 30fps
Audio Compression
G.711A, G.711U
Incoming Bandwidth
64Mbps
Outgoing Bandwidth
48Mbps
Remote Users
128
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
HDMI/VGA Output
HDMI: 3840 x 2160 at 30Hz; 1920 x 1080p at 60Hz; VGA: 1920 x 1080p at 60Hz / VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output
1-Channel, RCA
Liveview Display
1 / 4
Corridor Mode Screen
3 / 4
IP Video Input
4-Channel
FTP/Schedule/ Event Snapshot
1-ch snapshot, up to D1 resolution
Recording Resolution
4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Synchronous Playback
4-Channel
VCA Detection by IPC
Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
VCA Search
Behavior Search
Smart by IPC
4-Channel : Face Detection, SIP, UMD
General Alarm
Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm
IP conflict, Network Disconnected, Disk offline, Disk abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
SATA HDD
Up to 1 SATA HDD
Capacity
Up to 10TB for each HDD
Network Interface
1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface
Rear panel: 2 x USB2.0
Power Supply
DC 48V/1.35A
Max Power
Max 30W for single port, Max 54W in total
Supported Standard
IEEE 802.3at, IEEE 802.3af
Working Temperature
-10 °C ~ 55 °C (14 °F ~ 131 °F)
Working Humidity
≤ 90% RH (non-condensing)
Power Consumption
≤ 9.0W
Weight
≤ 1.1Kg (2.43lb) sans Disque Dur
Corridor Mode Screen
3 / 4
Dimensions
260mm × 240mm × 46mm / 10.2”×9.4”×1.8”
Certification
CE CE, FCC, UL, RoHS, WEEE; CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017; FCC: Part15 Subpart B
Decoding Format
H.265+ / H.265 / H.264
Network Interface
1 RJ45 10M/100M self-adaptive Ethernet Interface
Liveview/Playback
8MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
SATA HDD
Up to 1 SATA HDD
Storage
Up to 8TB for each disk
Smart Search
Face Search, Behavior Search
Smart Intrusion Prevention
4-Channel
Trigger Events
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection, IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
PoE Interface
4 RJ45 10M/100M self-adaptive Ethernet Interface
Maximum Capacity
Max: 30W for single port; Max: 54W in total
Supported Standard
IEEE 802.3at, IEEE 802.3af
Certification
Certification: CE CE, FCC, UL, RoHS, WEEE; CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017; FCC: Part15 Subpart B, ANSI C63.4
Power Supply
48V DC / Power Consumption: Less than 9W (without HDD)
Working Envrionment
-10°C to +55°C; Less than 90% RH (non-condensing)
Dimensions (WxDxH)
260mm × 240mm × 47mm (10.2” × 9.4” × 1.9“)
Weight (without HDD)
2.20 lbs (Up to 1kg)
