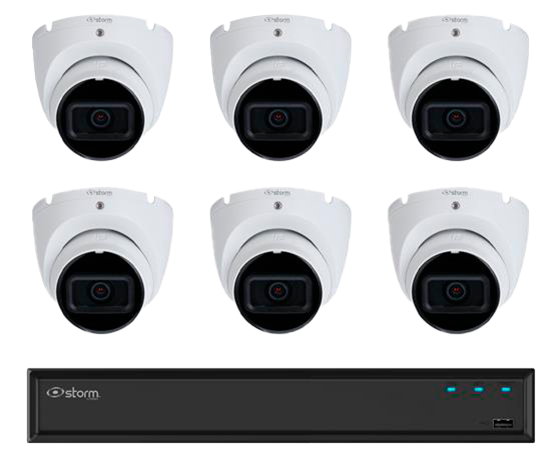

8 Channel 2 TB 4K NVR with 6 x 4.1MP Turret Cameras

Brand : STORM

PART #: INSK8N6T2T

Camera Features

Introducing our 4.1MP Turret Cameras, featuring a 4MP, 1/3” CMOS image sensor for high-quality imaging in low light. These cameras output a maximum resolution of 4MP (2688 × 1520) at 30 fps and use H.265 codec for high compression rates and ultra-low bit rates. Equipped with built-in IR LEDs, they offer a maximum IR distance of 30 meters. Abnormality detection capabilities include motion detection, video tampering, network disconnection, and more, ensuring comprehensive surveillance..

NVR Features

Introducing our 8 Channel 2TB 4K NVR, featuring H.265+/H.265 dual-stream video compression and adaptive decoding. It offers a maximum decoding capability of 6 × 1080p at 30 fps and includes AI per Camera functions such as Area Protector and Smart Motion Detection, ensuring enhanced security and performance for your surveillance needs.

Camera specifications -

Image Sensor 1/3” 4Megapixel progressive CMOS

Effective Pixels 2688 (H) ×1520 (V)

RAM/ROM 16MB/64MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.03 Lux at F2.0 (Color, 30IRE); 0.003 Lux at F2.0 (B/W, 30IRE) 0 Lux (Illuminator on)

S/N Ratio More than 56 dB

IR Distance 30 m (98.43 ft)

IR LEDs 1

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / DWDR

White Balance Auto / natural / street lamp / outdoor / manual / regional custom

Gain Control Auto/Manual

Noise Reduction 3D DNR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest Yes (4 areas)

Image Rotation 0°/180° (0° by default)

Smart Illumination Yes

Privacy Masking 4 Areas

Mirror Yes

Lens Type Fixed-flocal

Mount Type M12

Focal Length 2.8 mm

Max. Aperture F2.0

Viewing Angle Horizontal: 90°; Vertical: 50°; Diagonal: 107°

Pan/Tilt/Rotation Pan: 0°–355°; Tilt: 0°–78°; Rotation: 0°–355°

DORI Distance Detect 68.0 m (223.1 ft); Observe 27.2 m (89.2 ft); Recognize 13.6 m (44.6 ft); Identify 6.8 m (22.3 ft)

Compression H.265+; H.264+; MJPEG (only supported on the sub stream)

Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate Main Stream: 2688 × 1520 at 1 to 25/30 fps / Sub stream: 704 × 576 (1 fps to 25 fps); 704 × 480 (1 fps to 30 fps)

Bit Rate H.264: 32 Kbps–4096 Kbps; H.265: 12 Kbps–4096 Kbps

Certifications CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B

Alarm Event IP conflict; illegal access; motion detection; video tampering; security exception; network disconnection

Cyber Security Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and im- porting of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution

Ethernet RJ-45 (10/100 Base-T)

SDK & API Yes

Storage FTP

Management Software STORM, STORM+, ARKIV

Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast

Compatibility ONVIF (Profile S/ Profile T); CGI; P2P

Maximum User Access 6

Smart Phone iOS, Android

Browser Chrome; Firefox; Internet Explorer

Power Supply 12V DC/PoE (802.3af)

Power Consumption Less than 4.7W

Working Environment -40°C to +60°C (-40°F to +140°F); Less than 95% RH

Protection IP67

Material Metal

Dimensions 85.6 mm × Φ94.0 mm (3.37” × Φ3.70”)

Weight 0.71 lbs (0.32 kg)

NVR specifications -

Main Processor Industrial embedded micro-processor

Operating System Embedded LINUX

Operation Interface Web; local GUI

Area Protector/Performance 4 channels

Smart Motion Detection/Performance 4 channels, Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Channels 8 Channels

Network Bandwidth Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps

Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, D1

Decoding Capability 1-channel 12MP at 30 fps; 1-channel 8MP at 30 fps; 2-channel 5MP at 30 fps; 3-channel 4MP at 30 fps; 6-channel 1080p at 30 fps

Video Output 1 × VGA, 1 × HDMI (simultaneous)

Multi-screen Display 1 / 4 / 8 / 9

Third Party Camera Access ONVIF

Video Compression H.265+; H.264+; H.265; H.264; MJPEG

Audio Compression PCM; G.711A; G.711U; G.726

Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports STORM IP cameras, DVR, NVR, and more.) ; P2P

Mobile Phone Access Android; iOS

Interoperability ONVIF (Profile T/S/G), CGI, SDK

Multi-channel Playback Up to 8 channels

Record Mode Manual record; alarm record; motion detection record; schedule record

Storage Method Local HDD and Network

Backup USB device

Playback Function 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame / 2. Full screen; backup(video clip/file); partially zoom in; audio on/off

General Alarm Motion detection; privacy masking; video loss; PIR alarm

Anomaly Alarm Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception

Smart Alarm Area Protector; Smart Motion Detection

Alarm Linkage Recording; snapshot; buzzer; log; preset; email; tour

Audio Input 1 channel

Audio Output 1 channel

HDD 1 SATA ports, up to 16 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB 1 front USB 2.0 port; 1 rear USB 2.0 port

Network 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

PoE 8 × PoE ports, 10/100 Mbps

Power Supply 48/53 VDC, 2/1.8 A

Power Consumption Total output of NVR is ≤ 10 W (without HDD) Total output power of PoE is 72 W, the maximum output power of asingle port is 25.5 W

Weight 1.95 lbs (0.89kg)

Dimensions 260 mm × 232.7 mm × 47.6 mm (10.24” × 9.16” × 1.87”)

Operating Temperature -10°C to +55°C (+14°F to +131°F); 10%–93% (RH)

Installation Rack or Desktop

Specifications Sheet

16-08-2023 — INSK8N6T2T 8 Channel 2TB 4K NVR bundled with 6 x 4MP Turret Cameras.pdf
