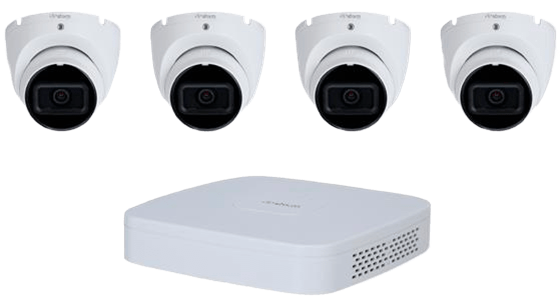

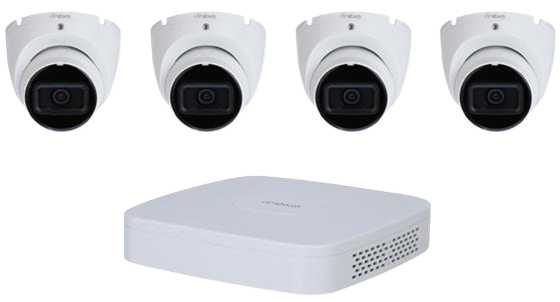

4 Channel 1 TB 4K NVR with 4 x 4.1MP Turret Cameras

Brand : STORM

UPC: 685225102854

PART #: INSK4N4T1T

Camera Features

Introducing our 4.1MP Turret Cameras, equipped with a 4MP, 1/3” CMOS image sensor for superior performance in low light conditions. These cameras deliver up to 4MP (2688 × 1520) resolution at 30 fps and feature H.265 codec for high compression rates and ultra-low bit rates. With built-in IR LEDs providing a maximum IR distance of 30 meters, they offer reliable surveillance. Additionally, they include advanced abnormality detection capabilities, such as motion detection, video tampering, and network disconnection.

NVR Features

Introducing our 4 Channel 1 TB 4K NVR, designed for high-performance video surveillance. It features H.265+/H.265 dual-stream video compression and supports adaptive decoding, maximizing efficiency. With a maximum decoding capability of 6 × 1080p at 30 fps, it ensures smooth and clear playback. Each camera benefits from advanced AI features, including Area Protector and Smart Motion Detection, providing intelligent monitoring and enhanced security.

Channels 4 Channels

Disk Space 1 TB

Plug & Play Video Recorders STORM Network Video Recorder

Camera specifications -

Image Sensor 1/3” 4Megapixel progressive CMOS

Effective Pixels 2688 (H) ×1520 (V)

RAM/ROM 16MB/64MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.03 Lux at F2.0 (Color, 30IRE); 0.003 Lux at F2.0 (B/W, 30IRE) 0 Lux (Illuminator on)

S/N Ratio More than 56 dB

IR Distance 30 m (98.43 ft)

IR LEDs 1

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / DWDR

White Balance Auto / natural / street lamp / outdoor / manual / regional custom

Gain Control Auto/Manual

Noise Reduction 3D DNR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest Yes (4 areas)

Image Rotation 0°/180° (0° by default)

Smart Illumination Yes

Privacy Masking 4 Areas

Mirror Yes

Lens Type Fixed-flocal

Mount Type M12

Focal Length 2.8 mm

Max. Aperture F2.0

Viewing Angle Horizontal: 90°; Vertical: 50°; Diagonal: 107°

Pan/Tilt/Rotation Pan: 0°–355°; Tilt: 0°–78°; Rotation: 0°–355°

DORI Distance Detect 68.0 m (223.1 ft); Observe 27.2 m (89.2 ft); Recognize 13.6 m (44.6 ft); Identify 6.8 m (22.3 ft)

Compression H.265+; H.264+; MJPEG (only supported on the sub stream)

Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate Main Stream: 2688 × 1520 at 1 to 25/30 fps / Sub stream: 704 × 576 (1 fps to 25 fps); 704 × 480 (1 fps to 30 fps)

Bit Rate H.264: 32 Kbps–4096 Kbps; H.265: 12 Kbps–4096 Kbps

Certifications CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B

Alarm Event IP conflict; illegal access; motion detection; video tampering; security exception; network disconnection

Cyber Security Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and im- porting of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution

Ethernet RJ-45 (10/100 Base-T)

SDK & API Yes

Storage FTP

Management Software STORM, STORM+, ARKIV

Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast

Compatibility ONVIF (Profile S/ Profile T); CGI; P2P

Maximum User Access 6

Smart Phone iOS, Android

Browser Chrome; Firefox; Internet Explorer

Power Supply 12V DC/PoE (802.3af)

Power Consumption Less than 4.7W

Working Environment -40°C to +60°C (-40°F to +140°F); Less than 95% RH

Protection IP67

Material Metal

Dimensions 85.6 mm × Φ94.0 mm (3.37” × Φ3.70”)

Weight 0.71 lbs (0.32 kg)

NVR specifications -

Main Processor Industrial embedded micro-processor

Operating System Embedded LINUX

Area Protector/Performance 4 channels

Smart Motion Detection/Performance 4 channels, Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Channels 4 channels

Network Bandwidth Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps

Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, D1

Decoding Capability 1-channel 12MP at 30 fps; 1-channel 8MP at 30 fps; 2-channel 5MP at 30 fps; 3-channel 4MP at 30 fps; 6-channel 1080p at 30 fps

Video Output 1 × VGA, 1 × HDMI (simultaneous)

Multi-screen Display 1 / 4

Third Party Camera Access ONVIF

Video Compression H.265+; H.264+; H.265; H.264; MJPEG

Audio Compression PCM; G.711A; G.711U; G.726

Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports STORM IP cameras, DVR, NVR, and more.) ; P2P

Mobile Phone Access Android; iOS

Interoperability ONVIF (Profile T/S/G), CGI, SDK

Multi-channel Playback 4 channels

Record Mode Manual record; alarm record; motion detection record; schedule record

Storage Method Local HDD and Network

Backup USB device

Playback Function 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame / 2. Full screen; backup(video clip/file); partially zoom in; audio on/off

General Alarm Motion detection; privacy masking; video loss; PIR alarm

Anomaly Alarm Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception

Smart Alarm Area Protector; Smart Motion Detection

Alarm Linkage Recording; snapshot; buzzer; log; preset; email; tour

Audio Input 1 channel

Audio Output 1 channel

HDD 1 SATA ports, up to 16 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB 2 rear USB 2.0 ports

Network 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

PoE 4 × PoE ports, 10/100 Mbps

Power Supply 48/53 VDC, 1.25/1.13 A

Power Consumption Total output of NVR is ≤ 10 W (without HDD) Total output power of PoE is 36 W, the maximum output power of a single port is 25.5 W

Weight 1.06 lbs (0.48kg)

Dimensions 204.6 mm × 206.4 mm × 45.6 mm (8.06” × 8.13” × 1.80”)

Operating Temperature -10°C to +55°C (+14°F to +131°F); 10%–93% (RH)

Installation Rack or Desktop

Specifications Sheet

16-08-2023 — INSK4N4T1T 4 Channel 1TB 4K NVR bundled with 4 x 4MP Turret Cameras.pdf
