LEGEND 4 CHANNEL 4K NVR/4 POE NO DRIVES

Brand : LEGEND

UPC: 0

PART #: INLG4414KN

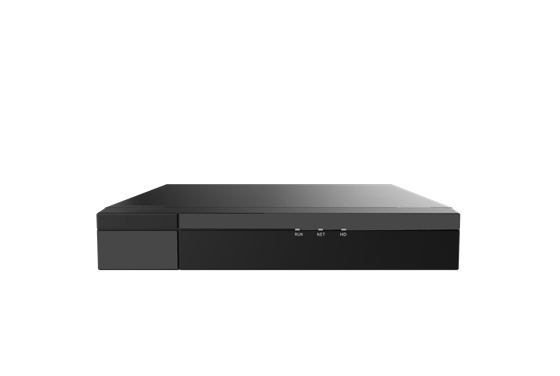

Introducing our 4-Channel 4K NVR, an efficient and powerful network video recorder designed for superior surveillance. Supporting H.265+, H.265, and H.264 compression, this NVR ensures optimal video storage and transmission.

With 4-channel input, it can record up to 8 Megapixels resolution, delivering ultra-clear video quality. The NVR features both HDMI and VGA outputs for simultaneous video display.

Equipped with one SATA HDD slot, it supports up to 8TB of storage, providing ample capacity for extensive video retention. The device also supports cloud upgrades, ensuring easy firmware updates and enhanced functionality.

Designed for simplicity, this NVR includes a plug-and-play 4-port PoE switch, making installation straightforward. Ideal for small-scale security systems, this 4-Channel 4K NVR offers a reliable, high-resolution recording solution with advanced features and ease of use.

Raid N/A

IP Video Input 4-Channel

Decoding Format H.265+ / H.265 / H.264

Capability 2 x 4K at 30fps; 3 x 5MP at 30fps; 4 x 4MP at 30fps

Audio Compression G.711A, G.711U

Incoming Bandwidth 80Mbps

Outgoing Bandwidth 64Mbps

Remote Users 128

Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP

Browser Windows: IE (IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)

HDMI/VGA Output HDMI: 3840 x 2160 at 30Hz; 1920 x 1080p at 60Hz; 1920 x 1080p at 50Hz; 1600 x 1200 at 60Hz; 1280 x 1024 at 60Hz; 1280 x 720 at 60Hz; 1024 x 768 at 60Hz // VGA: 1920 x 1080p at 60Hz; 1920 x 1080p at 50Hz; 1600 x 1200 at 60Hz; 1280 x 1024 at 60Hz; 1280 x 720 at 60Hz; 1024 x 768 at 60Hz

Audio Output 1-Channel, RCA

Liveview Display 1 / 4

Corridor Mode Screen 3 / 4

IP Video Input 4-Channel

RCA Audio Input 1-Channel

Two-way Audio Input 1-Channel, RCA

FTP/Schedule/Event Snapshot 4-Channel snapshot, up to D1 resolution

Recording Resolution 4k / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF

Synchronous Playback in Local 4-Channel

VCA Detection by IPC Face Detection, People Counting (People Flow Counting, Crowd Density Monitoring), SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection(UMD)

VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report

Smart by IPC 4-Channel : Face Detection, SIP, UMD

General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

SATA 1 SATA Interface

Capacity Up to 10TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)

Ethernet 1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Rear panel: 1 x USB2.0, 1 x USB 3.0

Power Supply DC 48V/1.35A

Power Consumption Less than 9.0W

PoE Interface 4 RJ45 10M/100M self-adaptive Ethernet Interface

Maximum Capacity Max: 30W for single port, Max: 54W in total

Supported Standard IEEE 802.3at, IEEE 802.3af

Certifications CE, FCC, UL, RoHS, WEEE

CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035

FCC Part15 Subpart B

Working Envrionment -10°C to +55°C; Less than 90% RH (non-condensing)

Dimensions 260mm × 240mm × 47mm (10.2” × 9.4” × 1.9“)

Weight Without HDD : Less than 2.43lb / 1.1kg

Specifications Sheet

28-08-2024 — INLG4414KN.pdf

User Manual

18-08-2021 — Network Video Recorders Quick Guide-V1.04 by Inaxsys.pdf

Want to know more about LEGEND ?

You asked, we listened. Tailored to your requirements, Legend is our NDAA compliant brand. It offers the latest in cutting edge video technologies, enhanced features and a robust build.

Not all choices have to be hard choices, that’s why Legend offers a variety of unique models. If you are installing your first or hundredth project, you won’t have to spend hours trying decide which device fits your needs.

Legend allows you to protect your home like a multinational enterprise would, and protect your multinational as if it was your home. All the features you need are in Legend.

Amazing 4K (8MP) resolution for perfect picture clarity

True WDR (120 dB) to offer you the best image in the most demanding lighting conditions

H.265+ Compression helps reduce your storage by up to 90%

Record up to 256GB of footage directly on your camera

Legend CLOUD Application for Android and iOS

Fully NDAA Compliant
