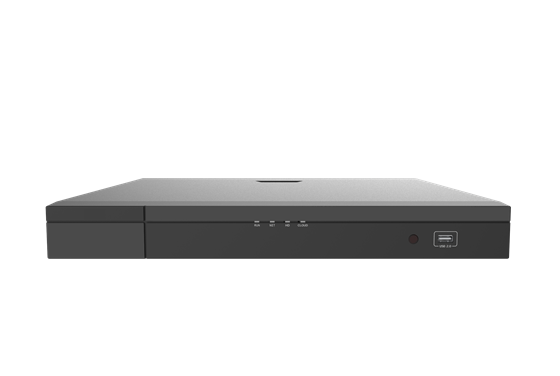

LEGEND 16 CHANNEL 4K NVR/16 POE

Brand : LEGEND

UPC: 0

PART #: INLG161624KN

Introducing our 16-Channel 4K NVR, a high-performance network video recorder designed for seamless and reliable surveillance. Supporting H.265+, H.265, and H.264 compression, this NVR ensures efficient video storage and transmission.

With 16-channel input, it can record up to 8 Megapixels resolution, providing ultra-clear video quality. The NVR features both HDMI and VGA outputs for simultaneous video display.

Equipped with two SATA HDDs, it supports up to 10TB per HDD, offering substantial storage capacity. The device also supports cloud upgrades for easy firmware updates and improved functionality.

Designed for simplicity, this NVR includes a plug-and-play 16-port PoE switch, making installation straightforward. Additionally, ANR technology enhances storage reliability during network outages, ensuring continuous recording without data loss.

Ideal for robust and scalable security systems, this 16-Channel 4K NVR provides the perfect blend of high-resolution recording, ample storage, and advanced features.

Plug & Play Video Recorders NDAA Legend Network Video Recorder

Channels 16 Channels

Raid Unequiped

IP Video Input 16-Channel

Two-way Audio Input 1-Channel, RCA

Incoming Bandwidth 160Mbps

Outgoing Bandwidth 64Mbps

Maximum Operators 32

Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP

HDMI/VGA Output HDMI: 3840 x 2160 at 30fps; 1920 x 1080 at 60fps; 1920 x 1080 at 50fps; 1600 x 1200 at 60fps; 1280 x 1024 at 60fps; 1280 x 720 at 60fps; 1024 x 768 at 60fps // VGA: 1920 x 1080 at 60fps, 1920 x 1080 at 50fps, 1280 x 1024 at 60fps, 1280 x 720 at 60fps, 1024 x 768 at 60fps

Recording Resolution 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

Audio Output 1-Channel, RCA

Audio Compression G.711A, G.711U

Synchronous Playback 16-Channel

Liveview Display 1 / 4 / 6 / 8 / 9 / 16

Corridor Mode Screen 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16

Decoding Format H.265+ / H.265 / H.264

Liveview/Playback 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

Capability 2 x 4K at 30fps, 4 x 4MP at 30fps, 5 x 3MP at 30fps, 8 x 1080P at 30fps, 16 x 720P at 30fps

SATA HDD Up to 2 SATA HDDs

Storage Up to 10TB for each disk

Camera Smart Detection Auto Tracking, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed

Smart Search Behavior Search

People Counting People Flow Counting, Crowd Density Monitoring

Smart Intrusion Prevention 8-Channel

Trigger Events Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection, IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/ Snapshot Abnormal

Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB 3.0

Alarm In/Out 4-Channel / 1-Channel

ONVIF conformance Profile S/G/T and RTSP protocols

Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface

Maximum Capacity Max: 30W for single port, Max: 240W in total

Supported Standard IEEE 802.3af/at

Certifications CE, FCC, UL, RoHS, WEEE

CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017

FCC Part15 Subpart B, ANSI C63.4

Power Supply 100 ~ 240 V AC / Power Consumption: Less than 10W (without HDD)

Working Envrionment -10°C to +55°C; Less than 90% RH (non-condensing)

Dimensions (WxDxH) 380mm × 315mm × 53mm (14.9” × 12.4” ×2.1”)

Weight (without HDD) 5.73 lbs (Up to 2.6kg)

Specifications Sheet

10-11-2023 — INLG161624KN 16 Channel 4K NVR 20231110(v2).pdf

Want to know more about LEGEND ?

You asked, we listened. Tailored to your requirements, Legend is our NDAA compliant brand. It offers the latest in cutting edge video technologies, enhanced features and a robust build.

Not all choices have to be hard choices, that’s why Legend offers a variety of unique models. If you are installing your first or hundredth project, you won’t have to spend hours trying decide which device fits your needs.

Legend allows you to protect your home like a multinational enterprise would, and protect your multinational as if it was your home. All the features you need are in Legend.

Amazing 4K (8MP) resolution for perfect picture clarity

True WDR (120 dB) to offer you the best image in the most demanding lighting conditions

H.265+ Compression helps reduce your storage by up to 90%

Record up to 256GB of footage directly on your camera

Legend CLOUD Application for Android and iOS

Fully NDAA Compliant
