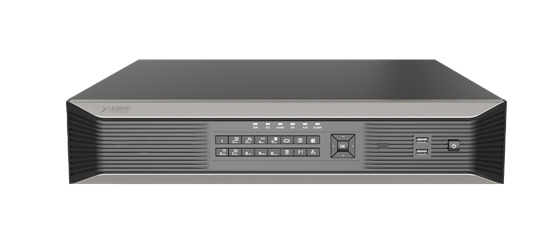

LEGEND 64 CHANNEL 4K NVR

Brand : LEGEND

UPC: 685225503279

PART #: INLG644KN

Introducing our 64-Channel 4K NVR, a powerful and reliable solution for advanced video surveillance systems. With support for H.265+ / H.265 / H.264 compression, this NVR efficiently manages video data while maintaining high image quality.

Featuring 64-channel input and the capability to record in resolutions of up to 12 megapixels, it offers comprehensive coverage and detailed monitoring for large-scale security applications.

Equipped with RAID 0, 1, 5, 6, and 10 support, as well as 8 SATA HDD slots with a capacity of up to 10TB each, this NVR provides flexible and robust storage options to suit diverse storage needs.

With ANR (Automatic Network Replenishment) technology, the NVR enhances storage reliability by automatically storing video data on its local HDDs during network interruptions, ensuring data integrity.

Additionally, the NVR supports cloud upgrades, allowing for seamless integration of the latest features and security enhancements. Ideal for demanding surveillance environments, our 64-Channel 4K NVR offers advanced functionality and performance to meet your security requirements.

Plug & Play Video Recorders NDAA Legend Network Video Recorder

Channels 64 Channels

Raid Unequiped

IP Video Input 64-Channel

Two-way Audio Input 1-Channel, RCA

Audio Compression G.711A, G.711U

Incoming Bandwidth 384Mbps

Outgoing Bandwidth 384Mbps

Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS

HDMI/VGA Output HDMI: 3840 x 2160 at 30Hz; 1920 x 1080 at 60Hz; 1024 x 768 at 60Hz VGA: 1920 x 1080 at 60Hz; 1600 x 1200 at 60Hz; 1024 x 768 at 60Hz

Corridor Mode Screen 3/4/5/7/9/10/12/16/32

Recording Resolution 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF

Audio Output 1-Channel, RCA

Synchronous Playback 16-Channel

Liveview Display HDMI: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36 / 64; VGA: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36

FTP / Schedule / Event Snapshot 64-Channel, up to 4k resolution

Decoding Format H.265+ / H.265 / H.264

Capability 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1

SATA Up to 8 SATA HDDs

Capacity Up to 12TB for each HDD (The maximum HDD capacity varies with environment temperature)

eSATA 1 eSATA interface

Disk Group Supported

RAID 0, 1, 5, 6, 10

VCA Detection by IPC Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring

VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report

Smart by IPC All channels (up to 24 frames/s in total) Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring

General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/ Snapshot Abnormal

GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces

USB Interface Rear panel: 1 x USB2.0, 1 x USB 3.0

RS232 1

RS485 1

Alarm In/Out 16-Channel / 4-Channel

Certifications CE, FCC, UL, RoHS, WEEE

CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017

FCC Part15 Subpart B

Power Supply 100 to 240 V AC / Power Consumption: Less than 25W (without HDD)

Working Environment -10°C to +55°C; Less than 90% RH (non-condensing)

Dimensions 442mm ×426mm× 89mm (17.4” × 16.8”× 3.5”)

Weight (without HDD) 12.57 lbs

Specifications Sheet

28-08-2024 — INLG644KN.pdf

User Manual

04-07-2023 — LEGEND-Network Video Recorders User Manual-V3.00-EN (1).pdf 07-06-2022 — Network Video Recorders Quick Guide-V1.04 by Inaxsys.pdf

Want to know more about LEGEND ?

You asked, we listened. Tailored to your requirements, Legend is our NDAA compliant brand. It offers the latest in cutting edge video technologies, enhanced features and a robust build.

Not all choices have to be hard choices, that’s why Legend offers a variety of unique models. If you are installing your first or hundredth project, you won’t have to spend hours trying decide which device fits your needs.

Legend allows you to protect your home like a multinational enterprise would, and protect your multinational as if it was your home. All the features you need are in Legend.

Amazing 4K (8MP) resolution for perfect picture clarity

True WDR (120 dB) to offer you the best image in the most demanding lighting conditions

H.265+ Compression helps reduce your storage by up to 90%

Record up to 256GB of footage directly on your camera

Legend CLOUD Application for Android and iOS

Fully NDAA Compliant
