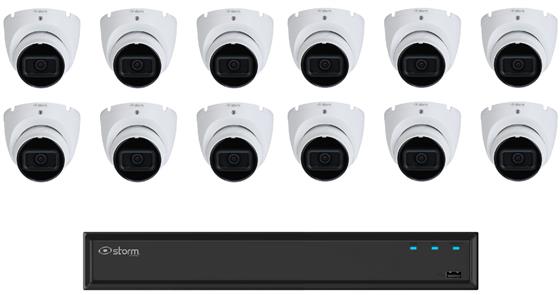

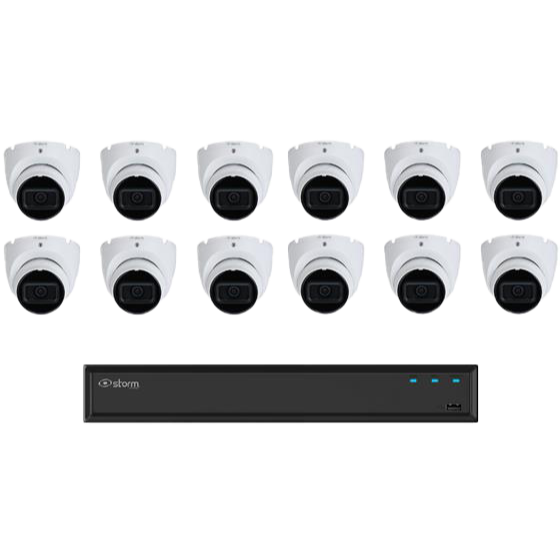

Enregistreurs Vidéo Plug-and-Play
Enregistreurs IP STORM
Canaux
16 Canaux
Camera specifications
-
Image Sensor
1/3” 4Megapixel progressive CMOS
Effective Pixels
2688 (H) ×1520 (V)
RAM/ROM
16MB/64MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination
0.03 Lux at F2.0 (Color, 30IRE); 0.003 Lux at F2.0 (B/W, 30IRE) 0 Lux (Illuminator on)
S/N Ratio
More than 56 dB
IR Distance
30 m (98.43 ft)
IR LEDs
1
Day/Night
Auto(ICR) / Color / B/W
Backlight Compensation
BLC / HLC / DWDR
White Balance
Auto / natural / street lamp / outdoor / manual / regional custom
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest
Yes (4 areas)
Image Rotation
0°/180° (0° by default)
Smart Illumination
Yes
Privacy Masking
4 Areas
Mirror
Yes
Lens Type
Fixed-flocal
Mount Type
M12
Focal Length
2.8 mm
Max. Aperture
F2.0
Viewing Angle
Horizontal: 90°; Vertical: 50°; Diagonal: 107°
Pan/Tilt/Rotation
Pan: 0°–355°; Tilt: 0°–78°; Rotation: 0°–355°
DORI Distance
Detect 68.0 m (223.1 ft); Observe 27.2 m (89.2 ft); Recognize 13.6 m (44.6 ft); Identify 6.8 m (22.3 ft)
Compression
H.265+; H.264+; MJPEG (only supported on the sub stream)
Resolution
4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate
Main Stream: 2688 × 1520 at 1 to 25/30 fps / Sub stream: 704 × 576 (1 fps to 25 fps); 704 × 480 (1 fps to 30 fps)
Bit Rate
H.264: 32 Kbps–4096 Kbps; H.265: 12 Kbps–4096 Kbps
Certifications
CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B
Alarm Event
IP conflict; illegal access; motion detection; video tampering; security exception; network disconnection
Cyber Security
Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and im- porting of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution
Ethernet
RJ-45 (10/100 Base-T)
SDK & API
Yes
Storage
FTP
Management Software
STORM, STORM+, ARKIV
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Compatibility
ONVIF (Profile S, Profile T), CGI, P2P
Maximum User Access
6
Smart Phone
iOS, Android
Browser
Chrome; Firefox; Internet Explorer
Power Supply
12V DC/PoE (802.3af)
Power Consumption
Less than 4.7W
Working Environment
Working Environment
Protection
IP67
Material
Metal
Dimensions
85.6 mm × Φ94.0 mm (3.37” × Φ3.70”)
Weight
0.71 lbs (0.32 kg)
NVR specifications
-
Main Processor
Industrial embedded micro-processor
Operating System
Embedded LINUX
Operation Interface
Web; local GUI
Area Protector/Performance
4 channels
Smart Motion Detection/Performance
4 channels, Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Channels
16 Channels
Network Bandwidth
Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, D1
Decoding Capability
1-channel 12MP at 30 fps; 1-channel 8MP at 30 fps; 2-channel 5MP at 30 fps; 3-channel 4MP at 30 fps; 6-channel 1080p at 30 fps
Video Output
1 × VGA, 1 × HDMI (simultaneous)
Multi-screen Display
1 / 4 / 8 / 9 / 16
Third Party Camera Access
ONVIF
Video Compression
H.265+; H.264+; H.265; H.264; MJPEG
Audio Compression
PCM; G.711A; G.711U; G.726
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports STORM IP cameras, DVR, NVR, and more.) ; P2P
Mobile Phone Access
Android; iOS
Interoperability
ONVIF (Profile S, Profile G, Profile T), CGI, SDK
Multi-channel Playback
Up to 16 channels
Record Mode
Manual record; alarm record; motion detection record; schedule record
Storage Method
Local HDD and Network
Backup
Backup
Playback Function
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame / 2. Full screen; backup(video clip/file); partially zoom in; audio on/off
General Alarm
Motion detection; privacy masking; video loss; PIR alarm
Anomaly Alarm
Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception
Smart Alarm
Area Protector; Smart Motion Detection
Alarm Linkage
Recording; snapshot; buzzer; log; preset; email; tour
Audio Input
1 channel
Audio Output
1 channel
HDD
1 SATA ports, up to 16 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB
1 front USB 2.0 port; 1 rear USB 2.0 port
Network
1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
Power Supply
12 VDC, 1.5 A
Power Consumption
Total output of NVR is ≤ 10 W (without HDD)
Weight
1.79 lbs (0.81kg)
Dimensions
260 mm × 232.7 mm × 47.6 mm (10.24” × 9.16” × 1.87”)
Operating Temperature
-10°C to +55°C (+14°F to +131°F); 10%–93% (RH)
Installation
Rack or Desktop
