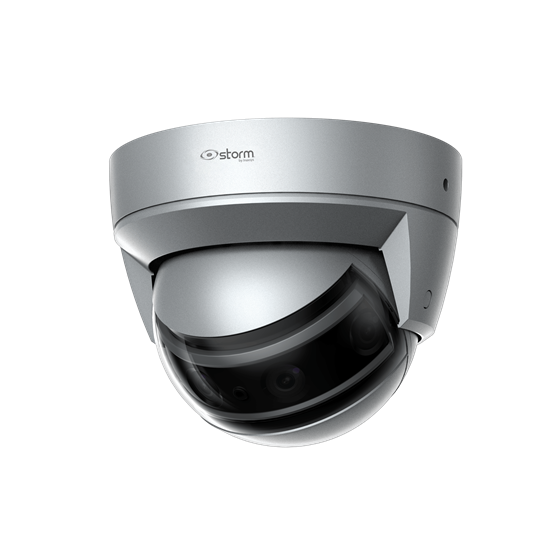

4x2MP (8MP) Network Multi-Lens IR Panoramic DOME W/IR

Brand : STORM

UPC: 685225602682

PART #: INSDO8180IRF

The 4x2MP (8MP) H.265 Network Multi-Lens IR Panoramic Dome Camera provides a comprehensive 180-degree view with four 2MP STARVIS™ CMOS sensors, delivering up to 8MP resolution (4096 × 1800) at 30 fps. This multi-lens design captures detailed panoramic footage, ideal for broad-area surveillance without compromising image quality.

Equipped with H.265+ and H.264+ compression, this camera efficiently manages bandwidth and storage. It features a 30m IR range for clear night visibility and supports intelligent detection functions, including vehicle analytics, intrusion, and tripwire monitoring. With a micro SD slot for up to 256GB of local storage, it’s a versatile solution for large-scale monitoring.

Inputs/Outputs With Inputs/Outputs

Audio In/Out With Audio Inputs and/or Outputs

Form Factor Dome

Lens Type Fixed

Wide Dynamic Range WDR less than 120dB

Megapixels 8 Megapixels

Image Sensor Four 1/2.8” 2Megapixel progressive scan CMOS

Effective Pixels 4096 (H) × 1800 (V)

RAM/ROM 2GB / 4GB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.005 Lux at F1.6 (Color, 30IRE); 0.0005 Lux at F1.6 (B/W, 30IRE) 0 Lux (Illuminator on)

S/N Ratio More than 56 dB

IR Distance 30 m (98.4 ft)

IR LEDs 6

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / DWDR

White Balance Auto / Natural / Street lamp / Outdoor / Manual / Regional Custom

Gain Control Auto / Manual

Noise Reduction 3D DNR

Smart Illumination Supported

Region of Interest Yes (4 areas)

Privacy Masking 4 areas

Lens Type Fixed

Lens Mount Type M12

Focal Length 2.8 mm

Max. Aperture F1.6

Viewing Angle Horizontal: 180.0° Vertical: 90.0°

DORI Distance Detect 38.6 m (126.6 ft); Observe 15.4 m (50.5 ft); Recognize 7.7 m (25.3 ft); Identify 3.9 m (12.8 ft)

Video Compression H.265+, H.264+, H.265, H.264, MJPEG (only supported by the sub stream)

Resolution 4096 × 1800; 3840 × 1680; 2880 × 1264; 1024 × 452; 1920 × 832; 1280 × 560

Frame Rate Main Stream: 4096 × 1800 (1–25/30 fps) Sub Stream: 1024 × 452 (1–25/30 fps) Third Stream: 1920 × 832 (1–25/30 fps)

Bit Rate H.264: 9 kbps–17664 kbps H.265: 9 kbps–17664 kbps

Vehicle Analytics Vehicle density; Parking space limit; Congestion alarm

People Counting Crowd map; Global people counting; People counting in area

Smart Features Intrusion, Tripwire

Audio Compression G.711A; G.711Mu; G.726; G.723

Audio I/O 1/1 RCA ports

Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; safety exception; crowd distribution map; vehicle congestion; parking upper limit

Alarm I/O 2 canaux d'entrée: 5mA 3V–5 VCC 2 canaux de sortie: 1,000mA 30 VCC/500mA 50 VCC

Network RJ-45 (10/100/1000 Base-T)

SDK and API Yes

Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Storage NAS; SFTP; FTP; Micro SD Card up to 256 GB

Management Software STORM, STORM+, ARKIV

Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour

Compatibility ONVIF (profile T/S/G); CGI; P2P; Milestone; Genetec

Maximum User Access 20

RS-485 1 (baud rate range: 1200 bps–115200 bps)

Power Supply 12V VCC/24V ACC/PoE(802.3at)

Power Consumption Basic power consumption: 4.9W (12V VCC); 6.4W(24V ACC); 6.5W (PoE) Max. power consumption (ICR + IR LED): 12.5W (12V VCC); 14.3W(24V ACC); 14.9W (PoE)

Working Environment –40 °C to +60 °C (–40 °F to +140 °F); Less than 95% RH

Protection Grade IP67; IK10

Dimensions 169.5 mm × Φ212 mm (6.7” × Φ8.3”)

Weight 8 lbs (3.65 kg)
