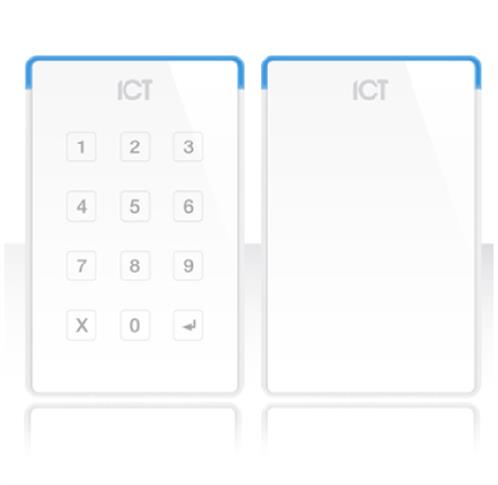

TSEC EXTRA COMBO 13.56MHz / 125KHz Card READER and keypad - Wall Plate Size - White

Brand : ICT

UPC: 685225105237

PART #: PRX-TSEC-EXTRA-KP-W

The tSec Extra Reader offers a versatile and comprehensive multi-technology smart card RFID solution, compatible with all Wiegand-capable control systems and equipped with RS-485 communication. Designed for rapid deployment in any environment, this reader supports multiple card technologies, including 13.56MHz and 125kHz wireless, making it adaptable to a wide range of applications. Available with a keypad and in either black or white, the tSec Extra Reader can be tailored to meet the specific needs and aesthetic preferences of any installation.

This reader supports DESFire, MIFARE, and 125kHz cards, ensuring broad compatibility from a single device. It offers secure communication through encrypted RS-485 or standard Wiegand connections and includes NFC credential reading. The reader also supports the OSDP communication protocol with a secure channel, providing an additional layer of security.

The tSec Extra Reader features a read range of up to 60mm (2.36") with proximity ISO cards and a configurable LED strip that allows for two-color control (blue and green) via external wiring, with 16 color options for Protege function codes when connected via RS-485. Its fully encapsulated design, rated IP65, ensures durability for both indoor and outdoor use. The reader’s standard wall plate size allows for easy replacement of existing fittings, and optional accessories further enhance its installation versatility.

Readers Readers

Operating Voltage 12VDC (9.5 to 14VDC)

Operating Current 298mA (peak, reading)

Card Read Range Mifare 60mm (2.36")*; 125kHz Clamshell 40mm (1.57”)^; DESFire EV1 ISO 15mm (0.6")*

Tag Read Range MIFARE 30mm (1.2")*; DESFire EV1/EV2 ISO 6mm (0.23)*; 125kHz 25mm (0.98")^

Wiegand Interface Multiple format 26 or 34 Bit data 0 and data 1, card defined.

Frequency 13.56 MHz ISO/IEC 14443 Type A*; 125kHz pulse width modulated^

Multi Conductor Cable Wiegand: 22Awg alpha 5196, 5198, 18Awg alpha 5386, 5388. Max Distance 150m (492ft); Module comms/RS485: Belden 9842 or equivalent. Max distance 900m (3000ft)

OSDP Communication OSDP standard 2.1.5 with Secure Channel Protocol ** / ***

NFC Read Range Up to 60mm***

NFC (Near-field communication) Electronic credential transmission technology Android 4.4 or above, with phones which support ISO7816-4; Proprietary Secured DESFire credential; Credential is AES-256 (NIST certified AES algorithm); Reader App Version: 1.04.175 and above; Credentials can be distinguished by unique site code and card number

NFC Wireless Device Protege Mobile 1.0.x

Environment IP Rating IP65

Operating Temperature UL/ULC -35° to 66°C (-31° to 151°F); EU EN -40° to 70°C (-40° to 158°F)

Storage Temperature -10° to 85°C (14° to 185°F)

Mean Time Between Failures (MTBF) 520,834 hours (calculated using RFD 2000 (UTE C 80-810) Standard)

Reader Dimensions (H x W x D) 117 x 75 x 18mm (4.61 x 2.95 x 0.71")

Reader with Surface Mount Box (H x W x D) 119 x 77 x 52mm (4.69 x 3.05 x 2.05")

tSec Extra Reader Net Weight: 160g (5.6oz); Gross Weight: 190g (6.7oz)

tSec Extra Reader Surface Mount Box Net Weight: 70g (2.5oz); Gross Weight: 100g (3.5oz)

Explanatory Footnotes *Applies to MIFARE/DESFire and Multi-Technology models only; ^Applies to 125kHz and Multi-Technology models only; **Applies to 125kHz and Multi-Technology models only; ***Applies to 125kHz and Multi-Technology models only
