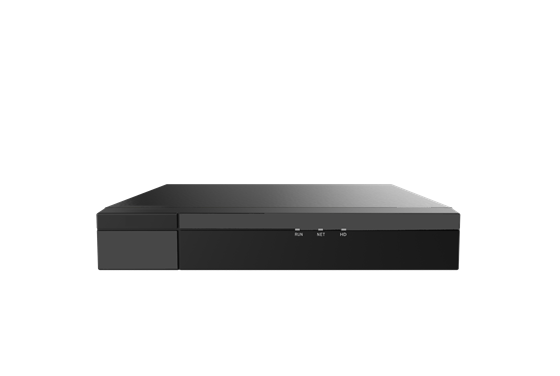

LEGEND 8 CHANNEL 4K NVR/8 POE

Brand : LEGEND

UPC: 0

PART #: INLG8814KN

Introducing our 8-Channel 4K NVR, a compact and efficient network video recorder designed for high-quality surveillance. Supporting H.265+, H.265, and H.264 compression, this NVR ensures optimal video storage and transmission efficiency.

With 8-channel input, it can record up to 8 Megapixels resolution, delivering ultra-clear video quality. The NVR features both HDMI and VGA outputs for simultaneous video display.

Equipped with one SATA HDD slot, it supports up to 8TB of storage, providing ample capacity for extended video retention. The device also supports cloud upgrades, ensuring easy firmware updates and enhanced functionality.

Perfect for small to medium-sized security systems, this 8-Channel 4K NVR offers a reliable and high-resolution recording solution with straightforward installation and advanced features.

Plug & Play Video Recorders NDAA Legend Network Video Recorder

Channels 8 Channels

Raid N/A

IP Video Input 8-Channel

Decoding Format H.265+ / H.265 / H.264

Capability 2 x 4K at 30fps; 3 x 5MP at 30; 4 x 4MP at 30; 5 x 3MP at 30fps; 8 x 1080p at 30fps

Audio Compression G.711A, G.711U

Incoming Bandwidth 80Mbps

Outgoing Bandwidth 64Mbps

Remote Users 128

Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP

Browser Windows: IE (IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)

HDMI/VGA Output HDMI: 3840 x 2160 at 30Hz;1920 x 1080p at 60Hz; 1920 x 1080p at 50Hz; 1600 x 1200 at 60Hz; 1280 x 1024 at 60Hz; 1280 x 720 at 60Hz; 1024 x 768 at 60Hz // VGA: 1920 x 1080p at 60Hz; 1920 x 1080p at 50Hz, 1600 x 1200 at 60Hz, 1280 x 1024 at 60Hz, 1280 x 720 at 60Hz; 1024 x 768 at 60Hz

Audio Output 1-Channel, RCA

Liveview Display 1 / 4 / 6 / 8 / 9

Corridor Mode Screen 3 / 4 / 5 / 7 / 9

IP Video Input 8-Channel

RCA Audio Input 1-Channel

Two-way Audio Input 1-Channel, RCA

FTP/Schedule/Event Snapshot 4-Channel snapshot, up to D1 resolution

Recording Resolution 4k / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF

Synchronous Playback 8-Channel

VCA Detection by IPC Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring

Smart Search 8-Channel: Face Detection, SIP, UMD

General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm P Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

SATA 1 SATA Interface

Capacity Up to 10TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)

Ethernet 1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Rear panel: 1 x USB3.0, 1 x USB2.0

Power Supply DC 52V/1.8A

Power Consumption Less than 9.0W

PoE Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface

Maximum Capacity Max 30W for single port, Max 75W in total

Supported Standard IEEE 802.3at, IEEE 802.3af

Certifications CE, FCC, UL, RoHS, WEEE

CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035

FCC Part15 Subpart B

Working Envrionment -10°C to +55°C; Less than 90% RH (non-condensing)

Dimensions 260mm × 240mm × 47mm (10.2”×9.4”×1.9 “)

Weight (without HDD) 2.43lb / 1.1kg

Specifications Sheet

10-11-2023 — INLG8814KN 8 Channel 4K NVR 20231110(v2).pdf 28-08-2024 — INLG8814KN.pdf

User Manual

18-08-2021 — Network Video Recorders Quick Guide-V1.04 by Inaxsys.pdf

Want to know more about LEGEND ?

You asked, we listened. Tailored to your requirements, Legend is our NDAA compliant brand. It offers the latest in cutting edge video technologies, enhanced features and a robust build.

Not all choices have to be hard choices, that’s why Legend offers a variety of unique models. If you are installing your first or hundredth project, you won’t have to spend hours trying decide which device fits your needs.

Legend allows you to protect your home like a multinational enterprise would, and protect your multinational as if it was your home. All the features you need are in Legend.

Amazing 4K (8MP) resolution for perfect picture clarity

True WDR (120 dB) to offer you the best image in the most demanding lighting conditions

H.265+ Compression helps reduce your storage by up to 90%

Record up to 256GB of footage directly on your camera

Legend CLOUD Application for Android and iOS

Fully NDAA Compliant
