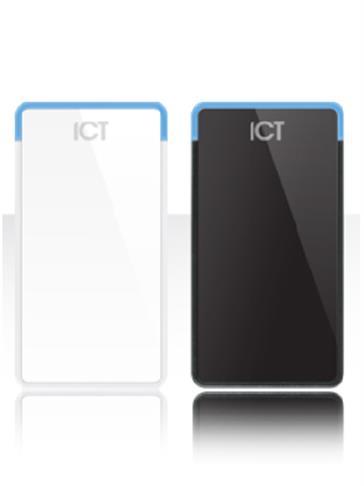

TSEC MINI 125 KHz reader - Black

Brand : ICT

UPC: 685225105565

PART #: PRX-TSEC-MINI-125-B

The tSec Mini Reader is a versatile, multi-technology smart card RFID solution designed to integrate seamlessly with all Wiegand-capable control systems. Incorporating RS-485 communication, this reader ensures the rapid deployment of secure technology in any environment. The tSec Mini Reader is available in multiple card capabilities, including 125kHz wireless technology, and offers a choice of black or white finishes, allowing you to select the model that best fits your needs and decor.

This reader supports multi-card technology, providing compatibility with 125kHz cards from a single reader. For enhanced security, it features encrypted RS-485 communication or standard Wiegand connection, giving you flexibility in integration. Additionally, the reader offers optional Bluetooth® and NFC credential reading, further expanding its functionality.

Supporting the OSDP communication protocol with Secure Channel, the tSec Mini Reader delivers secure and reliable data transmission. The reader has a read range of up to 60mm (2.36") with proximity ISO cards, ensuring efficient operation. A configurable LED strip allows for two-color control (blue and green) via external LED wiring, with 16 color options selectable for Protege function codes when using the RS-485 connection.

Designed for durability, the tSec Mini Reader features a fully encapsulated design with an environmental IP rating of IP65, making it suitable for both indoor and outdoor operation. Its small, discreet size allows for easy installation in various settings, ensuring it meets the requirements of modern security and access control systems.

Readers Readers

Operating Voltage 12VDC (9.5 to 14VDC)

Operating Current 203mA (peak, reading)

Card Read Range Mifare 60mm (2.36")*; 125kHz Clamshell 40mm (1.57”)^; DESFire EV1 ISO 15mm (0.6")*

Tag Read Range MIFARE 30mm (1.2")*; DESFire EV1/EV2 ISO 6mm (0.23")*; 125kHz 25mm (0.98")^

Wiegand Interface Multiple format 26 or 34 Bit data 0 and data 1, card defined.

Frequency 13.56 MHz ISO/IEC 14443 Type A*; 125kHz pulse width modulated^

Multi Conductor Cable Wiegand: 22Awg alpha 5196, 5198, 18Awg alpha 5386, 5388. Max Distance 150m (492ft); Module comms/RS485: Belden 9842 or equivalent. Max distance 900m (3000ft)

OSDP Communication OSDP standard 2.1.5 with Secure Channel Protocol ** / ***

NFC Read Range Up to 60mm***

NFC (Near-field communication) Electronic credential transmission technology Android 4.4 or above, with phones which support ISO7816-4; Proprietary Secured DESFire credential; Credential is AES-256 (NIST certified AES algorithm); Reader App Version: 1.04.175 and above; Credentials can be distinguished by unique site code and card number

NFC Wireless Device Protege Mobile 1.0.x

Environment IP Rating IP65

Operating Temperature UL/ULC -35° to 66°C (-31° to 151°F) : EU EN -40° to 70°C (-40° to 158°F)

Storage Temperature -10° to 85°C (14° to 185°F)

Mean Time Between Failures (MTBF) 520,834 hours (calculated using RFD 2000 (UTE C 80-810) Standard)

Reader Dimensions (H x W x D) 85 x 46 x 17mm (3.35 x 1.81 x 0.67”)

tSec Mini Reader Net Weight: 80g (2.8oz); Gross Weight: 100g (3.5oz)

Explanatory Footnotes *Applies to MIFARE/DESFire and Multi-Technology models only; ^Applies to 125kHz and Multi-Technology models only; **Applies to 125kHz and Multi-Technology models only; ***Applies to 125kHz and Multi-Technology models only
